Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

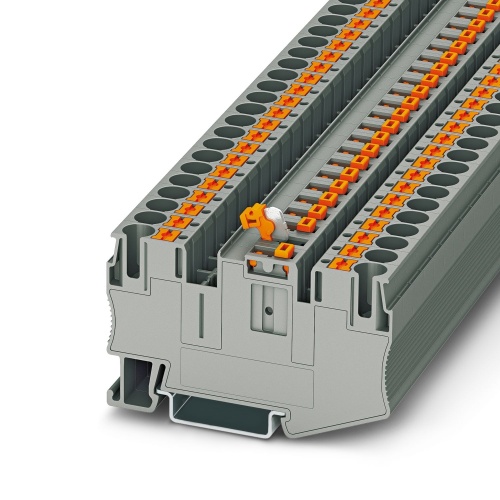

Phoenix Contact 3212160 Knife-disconnect terminal block PT 6-MT
Normally In Stock
Code: 42157
PT 6-MT Phoenix Contact 3212160 Knife disconnect Terminal Block - PT 6-MT Push-In Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 500 V, 20 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$7.94
Sale Price
$6.62
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212160 The knife-disconnect terminal block features a nominal voltage of 500 V and a maximum current rating of 20 A, utilizing push-in connections with a minimum cross-sectional area of 0.5 mm2 to a maximum of 10 mm2 for safe operation. It is designed to be mounted using the NS 35/7.5 or NS 35/15 standard mounting systems, with a gray color designation.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
Downloads
Phoenix 3212160 CAD data International.dxfPhoenix 3212160 CAD data International.pdfPhoenix 3212160 CAD data International.stpPhoenix 3212160 Manufacturers declaration International-2.pdfPhoenix 3212160 Manufacturers declaration International.pdfPhoenix 3212160 Safety note English.pdfPhoenix 3212160 Tender Text English.zip
