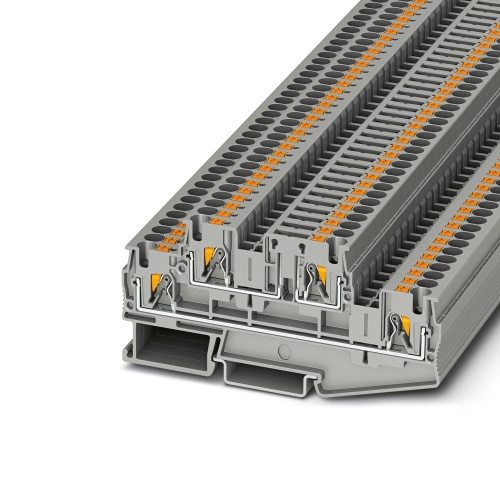

Phoenix Contact 3211909 Disconnect terminal block PTTB 4-TG
Normally In Stock
Code: 42153
PTTB 4-TG Phoenix Contact 3211909 Disconnect Terminal Block - PTTB 4-TG Push-In Connection 1 Level 6.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 500 V, 20 A max rating.
Condition: New
Usually Ships Same day or Next Day$6.17
Sale Price
$5.14
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211909 The terminal block's configuration varies depending on the plug used, with a nominal voltage of 500 V and a maximum current capacity of 28 A, supported by two levels of connections using push-in methods, rated for cross sections between 0.2 mm² and 6 mm², mounted on NS 35/7.5 or NS 35/15 modules, and featuring a gray color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Disconnect Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
Downloads
Phoenix 3211909 CAD data International.dxfPhoenix 3211909 CAD data International.pdfPhoenix 3211909 CAD data International.stpPhoenix 3211909 Manufacturers declaration International-2.pdfPhoenix 3211909 Manufacturers declaration International.pdfPhoenix 3211909 Safety note English.pdfPhoenix 3211909 Tender Text English.zip
