Code: 42138

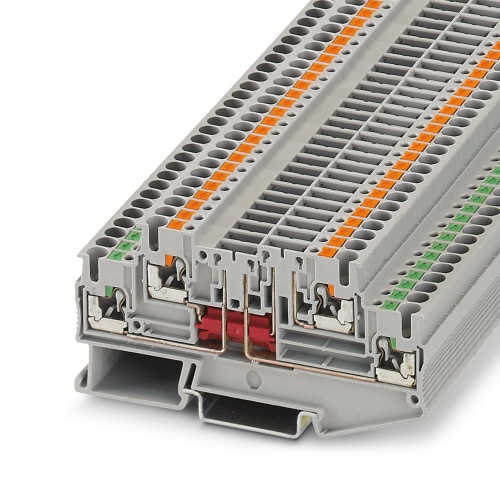

Phoenix Contact 3210286 Disconnect terminal block PTT 2,5-2TG
Normally In Stock
PTT 2,5-2TG Phoenix Contact 3210286 Disconnect Terminal Block - PTT 2,5-2TG Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 V, 16 A max rating.
Condition: New
Usually Ships Same day or Next Day$15.10
Sale Price
$12.58
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210286 To determine the current and voltage, refer to the plug used. The nominal voltage is 400V and the thermal continuous current limit is 16A for connections at levels one and two. Connections are made using push-in methods with rated cross sections ranging from 0.14-4mm² and can be mounted on NS35/7.5 or NS35/15 fixtures, while also being available in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Model Type
PTT
Features
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3210286 CAD data International.dxfPhoenix 3210286 CAD data International.pdfPhoenix 3210286 CAD data International.stpPhoenix 3210286 Manufacturers declaration International-2.pdfPhoenix 3210286 Manufacturers declaration International-3.pdfPhoenix 3210286 Manufacturers declaration International.pdfPhoenix 3210286 Safety note English.pdfPhoenix 3210286 Tender Text English.zip
