Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 42137

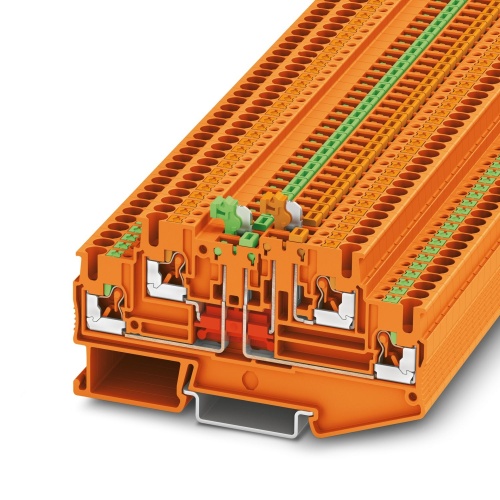

Phoenix Contact 3210372 Knife-disconnect terminal block PTT 2,5-2MT OG
Normally In Stock
PTT 2,5-2MT OG Phoenix Contact 3210372 Knife disconnect Terminal Block - PTT 2,5-2MT OG Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Orange. 400 V, 16 A max rating.
Condition: New
Usually Ships Same day or Next Day$17.46
Sale Price
$14.55
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210372 The knife-disconnect terminal block features a nominal voltage of 400V and an associated current capacity of 16A, with multiple connection levels available for secure push-in connections. The rated cross-sectional area ranges from 0.14mm² to 4mm², while mounting options include NS35/7.5 and NS35/15, with the terminal block itself colored in orange.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Orange
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Model Type
PTT
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Clear identification of the disconnect point, thanks to color highlighting
Convenient separation of circuits, thanks to lever-type disconnect knife
Downloads
Phoenix 3210372 CAD data International.dxfPhoenix 3210372 CAD data International.pdfPhoenix 3210372 CAD data International.stpPhoenix 3210372 Manufacturers declaration International-2.pdfPhoenix 3210372 Manufacturers declaration International-3.pdfPhoenix 3210372 Manufacturers declaration International.pdfPhoenix 3210372 Safety note English.pdfPhoenix 3210372 Tender Text English.zip
