Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 42135

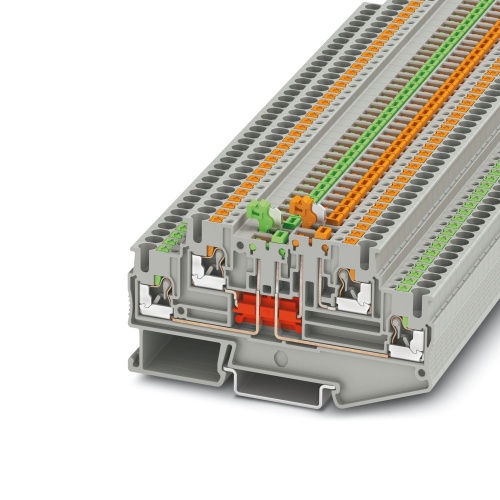

Phoenix Contact 3210258 Knife-disconnect terminal block PTT 2,5-2MT
Normally In Stock
PTT 2,5-2MT Phoenix Contact 3210258 Knife disconnect Terminal Block - PTT 2,5-2MT Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 V, 16 A max rating.
Condition: New
Usually Ships Same day or Next Day$16.69
Sale Price
$13.91
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210258 A knife-disconnect terminal block with a nominal voltage of 400V and an nominal current capacity of 16A is available in two levels of connection, utilizing a push-in connection method. The rated cross-sectional area varies between 2.5mm² and 4mm², while the actual cross-section ranges from 0.14mm² to 4mm². These terminal blocks are designed for mounting on NS35/7.5 and NS35/15 brackets in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Model Type
PTT
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Convenient separation of circuits, thanks to lever-type disconnect knife
Clear identification of the disconnect point, thanks to color highlighting
Downloads
Phoenix 3210258 CAD data International.dxfPhoenix 3210258 CAD data International.pdfPhoenix 3210258 CAD data International.stpPhoenix 3210258 Manufacturers declaration International-2.pdfPhoenix 3210258 Manufacturers declaration International-3.pdfPhoenix 3210258 Manufacturers declaration International.pdfPhoenix 3210258 Product Information English.pdfPhoenix 3210258 Safety note English.pdfPhoenix 3210258 Tender Text English.zip
