Code: 42131

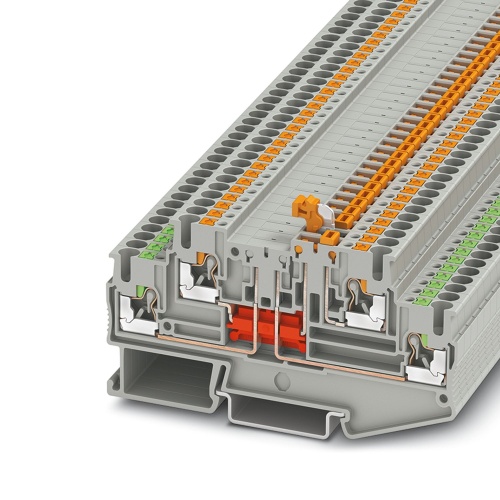

Phoenix Contact 3210251 Knife-disconnect terminal block PTT 2,5-L/MT
Normally In Stock
PTT 2,5-L/MT Phoenix Contact 3210251 Knife disconnect Terminal Block - PTT 2,5-L/MT Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 V, 16 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$15.23
Sale Price
$12.69
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210251 The knife-disconnect terminal block features a nominal voltage of 400V and a maximum nominal current of 16A, with two levels of connection available. The push-in connection method allows for easy installation, while the rated cross section is 2.5mm². The actual cross sectional area ranges from 0.14mm² to 4mm², and the terminal block can be mounted using either the NS 35/7.5 or NS 35/15 configurations, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Model Type
PTT
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
Clear identification of the disconnect point, thanks to color highlighting
Convenient separation of circuits, thanks to lever-type disconnect knife
Downloads
Phoenix 3210251 CAD data International.dxfPhoenix 3210251 CAD data International.pdfPhoenix 3210251 CAD data International.stpPhoenix 3210251 Manufacturers declaration International-2.pdfPhoenix 3210251 Manufacturers declaration International-3.pdfPhoenix 3210251 Manufacturers declaration International.pdfPhoenix 3210251 Safety note English.pdfPhoenix 3210251 Tender Text English.zip
