Code: 42126

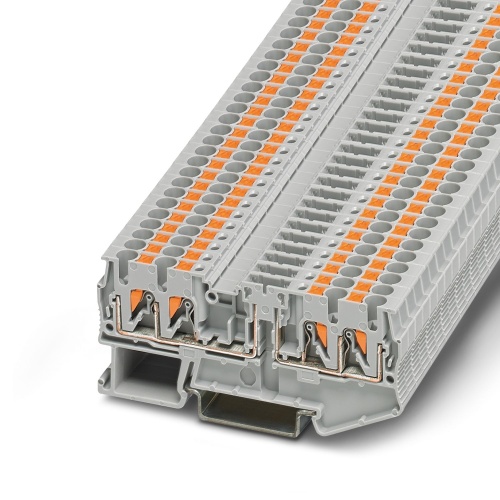

Phoenix Contact 3270094 Disconnect terminal block PTC 2,5-QUATTRO-TG
Normally In Stock
PTC 2,5-QUATTRO-TG Phoenix Contact 3270094 Disconnect Terminal Block - PTC 2,5-QUATTRO-TG Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 V, 20 A max rating.
Condition: New
Usually Ships Same day or Next Day$5.41
Sale Price
$4.51
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3270094 To ensure safe operation, the maximum load current of all connected conductors must not exceed the total current, taking into account the plug's voltage and current ratings. The standard values for these parameters are 400 V for voltage and 20 A for nominal current, with a connection method that involves pushing wires into place. The allowed cross-sectional area ranges from 0.14 to 4 mm2, while specific mounting requirements include NS 35/7.5 and NS 35/15 configurations, and the color of choice is gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Model Type
PTC
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
