Code: 42125

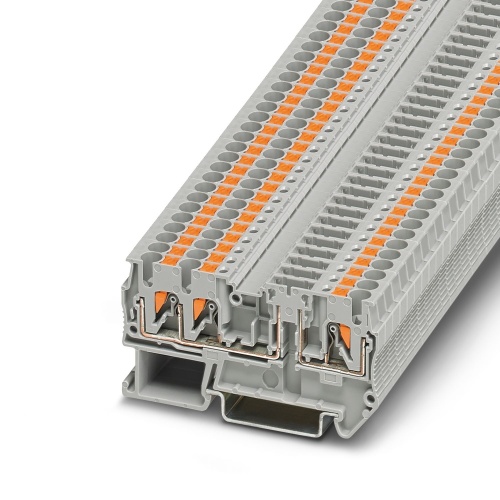

Phoenix Contact 3270091 Disconnect terminal block PTC 2,5-TWIN-TG
Normally In Stock
PTC 2,5-TWIN-TG Phoenix Contact 3270091 Disconnect Terminal Block - PTC 2,5-TWIN-TG Push-In Connection 1 Level 5.2 mm with 3 Connections. Not Grounded, Not Fused Gray. 400 V, 20 A max rating.
Condition: New
Usually Ships Same day or Next Day$4.87
Sale Price
$4.06
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3270091 The maximum load current for the terminal block should not exceed the total current of all connected conductors, as current and voltage are determined by the plug used. Specifications include a nominal voltage of 400V, a thermal continuous current rating of 20A, and a push-in connection method, with rated cross sections ranging from 0.14mm² to 4mm². The terminal block is mounted using the NS35/7.5 or NS35/15 mounting system, and has a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Model Type
PTC
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
