Code: 42120

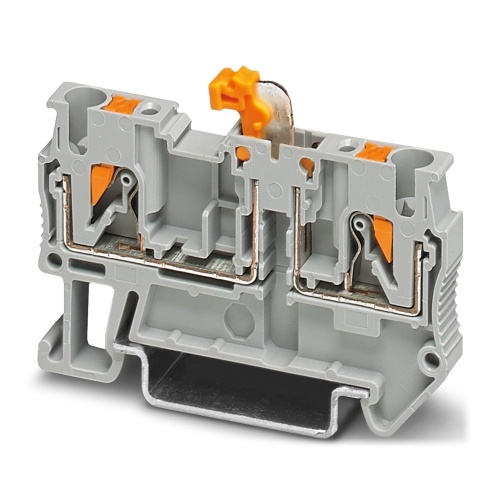

Phoenix Contact 3270079 Knife-disconnect terminal block PTC 2,5-MT
Normally In Stock
PTC 2,5-MT Phoenix Contact 3270079 Knife disconnect Terminal Block - PTC 2,5-MT Push-In Connection 1 Level 5.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 400 V, 20 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$4.36
Sale Price
$3.63
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3270079 The knife-disconnect terminal block has a nominal voltage of 400V and a nominal current rating of 20A with one level of connection available via push-in connections. The rated cross-sectional area is 2.5mm², but can range from 0.14mm² to 4mm² for various applications. It comes in two mounting types: NS 35/7,5 and NS 35/15, with the latter featuring a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
A 2.3 mm test pick-off is available on both sides
Downloads
Phoenix 3270079 CAD data International.dxfPhoenix 3270079 CAD data International.pdfPhoenix 3270079 CAD data International.stpPhoenix 3270079 Manufacturers declaration International-2.pdfPhoenix 3270079 Manufacturers declaration International-3.pdfPhoenix 3270079 Manufacturers declaration International.pdfPhoenix 3270079 Safety note English.pdfPhoenix 3270079 Tender Text English.zip
