Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 42118

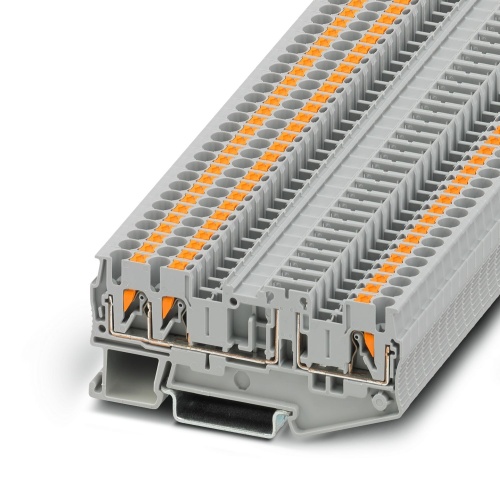

Phoenix Contact 3210193 Disconnect terminal block PT 2,5-TWIN-TGB
Normally In Stock
PT 2,5-TWIN-TGB Phoenix Contact 3210193 Disconnect Terminal Block - PT 2,5-TWIN-TGB Push-In Connection 1 Level 5.2 mm with 3 Connections. Not Grounded, Not Fused Gray. 400 V, 16 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.85
Sale Price
$3.21
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210193 To ensure safe connections, first disconnect the terminal block to prevent any electrical shock or damage. The maximum allowed load current must not exceed the total current of all connected conductors, which is determined by the type and voltage rating of the plug being used, with a nominal voltage of 400V and a nominal current of 16A. The connection method is typically a push-in connection, while the rated cross-section can vary from 0.14mm² to 4mm² depending on the specific requirements. Additionally, mounting options include NS35/7.5 and NS35/15, and all conductors should be protected with a gray color code.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3210193 CAD data International.dxfPhoenix 3210193 CAD data International.pdfPhoenix 3210193 CAD data International.stpPhoenix 3210193 Manufacturers declaration International-2.pdfPhoenix 3210193 Manufacturers declaration International.pdfPhoenix 3210193 Safety note English.pdfPhoenix 3210193 Tender Text English.zip
