Code: 42110

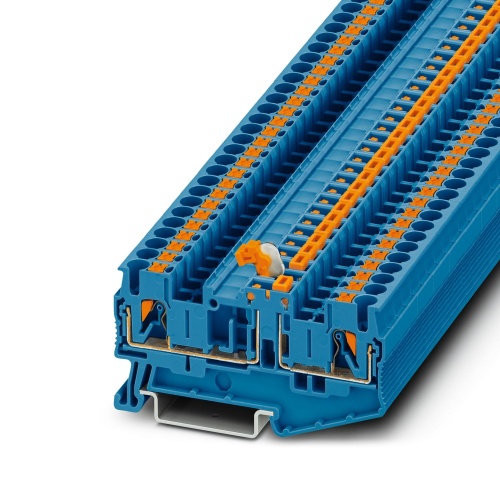

Phoenix Contact 3210163 Knife-disconnect terminal block PT 2,5-MTB BU
Normally In Stock
PT 2,5-MTB BU Phoenix Contact 3210163 Knife disconnect Terminal Block - PT 2,5-MTB BU Push-In Connection 1 Level 5.2 mm with 2 Connections. Not Grounded, Not Fused Blue. 400 V, 16 A max rating.
Condition: New
Usually Ships Same day or Next Day$5.09
Sale Price
$4.24
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210163 A knife-disconnect terminal block is a component that features 400V nominal voltage and can handle up to 16A of current, utilizing a push-in connection method for secure attachment. The rated cross-sectional area spans from 2.5mm² to 4mm², while the actual available cross-section ranges between 0.14mm² to 4mm². Mounting options include NS35/7,5 and NS35/15, and this terminal block is characterized by its blue coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
Downloads
Phoenix 3210163 CAD data International.dxfPhoenix 3210163 CAD data International.pdfPhoenix 3210163 CAD data International.stpPhoenix 3210163 Manufacturers declaration International-2.pdfPhoenix 3210163 Manufacturers declaration International-3.pdfPhoenix 3210163 Manufacturers declaration International-4.pdfPhoenix 3210163 Manufacturers declaration International.pdfPhoenix 3210163 Safety note English.pdfPhoenix 3210163 Tender Text English.zip
