Code: 42108

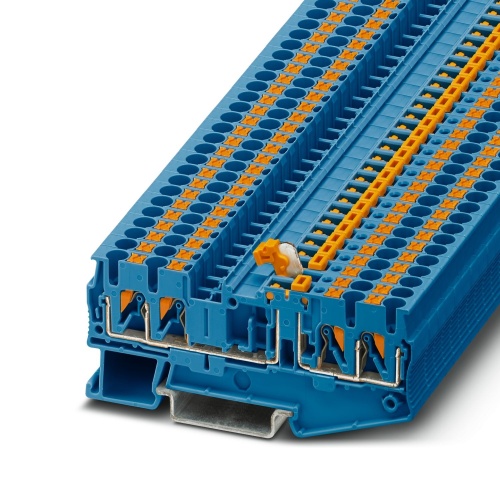

Phoenix Contact 3211676 Knife-disconnect terminal block PT 2,5-QUATTRO-MT BU
Normally In Stock
PT 2,5-QUATTRO-MT BU Phoenix Contact 3211676 Knife disconnect Terminal Block - PT 2,5-QUATTRO-MT BU Push-In Connection 1 Level 5.2 mm with 4 Connections. Not Grounded, Not Fused Blue. 400 V, 20 A max rating.
Condition: New
Usually Ships Same day or Next Day$6.60
Sale Price
$5.50
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211676 A knife-disconnect terminal block with a nominal voltage of 400V and a maximum current capacity of 20A features push-in connections, allowing for easy installation. The rated cross-sectional area is 2.5mm², but can accommodate smaller to larger sections between 0.14mm² and 4mm², depending on the application. Mounting options include NS35/7.5 and NS35/15, and the device is distinguished by its blue coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3211676 CAD data International.dxfPhoenix 3211676 CAD data International.pdfPhoenix 3211676 CAD data International.stpPhoenix 3211676 Manufacturers declaration International-2.pdfPhoenix 3211676 Manufacturers declaration International-3.pdfPhoenix 3211676 Manufacturers declaration International.pdfPhoenix 3211676 Safety note English.pdfPhoenix 3211676 Tender Text English.zip
