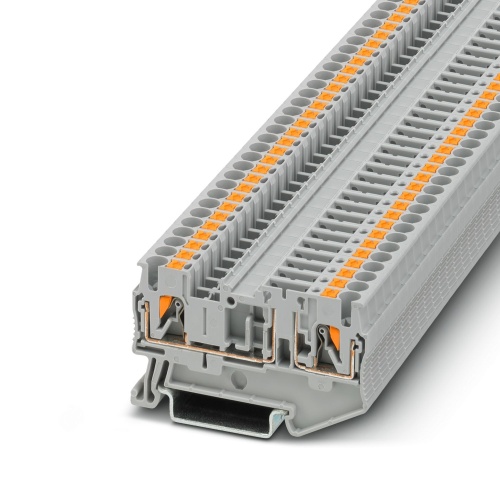

Phoenix Contact 3210185 Disconnect terminal block PT 2,5-TG
Normally In Stock
Code: 42100
PT 2,5-TG Phoenix Contact 3210185 Disconnect Terminal Block - PT 2,5-TG Push-In Connection 1 Level 5.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 400 V, 20 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.30
Sale Price
$2.75
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210185 The terminal block specifications are as follows, with the plug determining current and voltage: a 400V nominal voltage is achieved through a push-in connection, using a rated cross section of 2.5mm², while actual cross sections can range from 0.14 to 4mm², with mounting options including NS35/7.5 and NS35/15, all in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 3210185 CAD data International.dxfPhoenix 3210185 CAD data International.pdfPhoenix 3210185 CAD data International.stpPhoenix 3210185 Manufacturers declaration International-2.pdfPhoenix 3210185 Manufacturers declaration International.pdfPhoenix 3210185 Product Information English.pdfPhoenix 3210185 Safety note English.pdfPhoenix 3210185 Tender Text English.zip
