Code: 42092

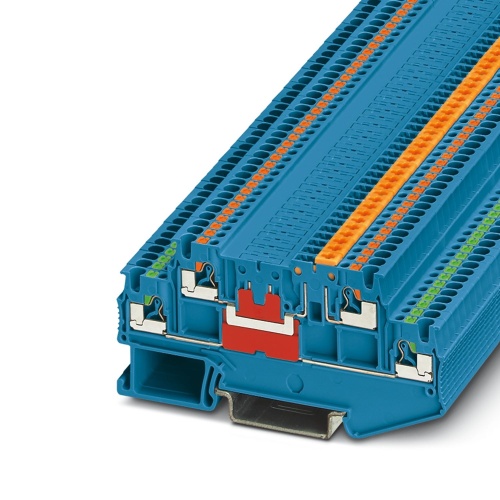

Phoenix Contact 3210342 Knife-disconnect terminal block PTT 1,5/S-L/MT BU
Normally In Stock
PTT 1,5/S-L/MT BU Phoenix Contact 3210342 Knife disconnect Terminal Block - PTT 1,5/S-L/MT BU Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Blue. 400 V, 9 A max rating.
Condition: New
Usually Ships Same day or Next Day$13.80
Sale Price
$11.50
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210342 The knife-disconnect terminal block features a 400 V nominal voltage and a maximum current rating of 9 A across two levels, with connections made via push-in methods. The rated cross-section is 1.5 mm2, spanning from 0.14 mm2 to 1.5 mm2, and can be mounted using either NS 35/7.5 or NS 35/15 options, characterized by a distinctive blue coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
9 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors

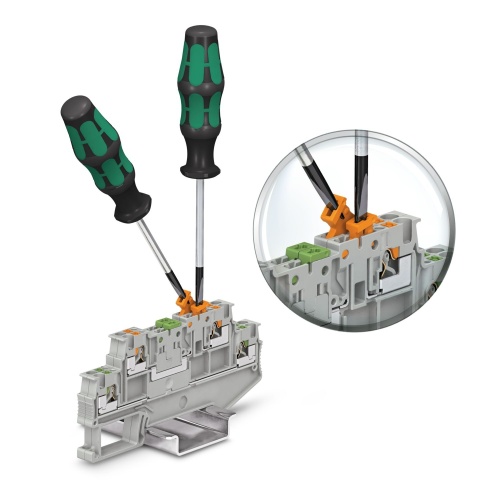

Convenient separation of circuits, thanks to lever-type disconnect knife
Clear identification of the disconnect point, thanks to color highlighting
Downloads
Phoenix 3210342 CAD data International.dxfPhoenix 3210342 CAD data International.pdfPhoenix 3210342 CAD data International.stpPhoenix 3210342 Manufacturers declaration International-2.pdfPhoenix 3210342 Manufacturers declaration International-3.pdfPhoenix 3210342 Manufacturers declaration International.pdfPhoenix 3210342 Safety note English.pdfPhoenix 3210342 Tender Text English.zip
