Code: 42091

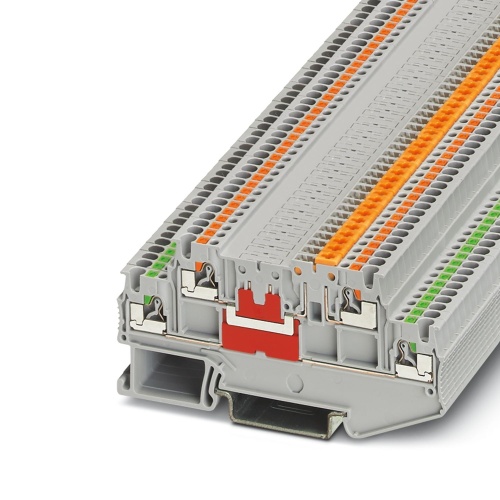

Phoenix Contact 3210341 Knife-disconnect terminal block PTT 1,5/S-L/MT
Normally In Stock
PTT 1,5/S-L/MT Phoenix Contact 3210341 Knife disconnect Terminal Block - PTT 1,5/S-L/MT Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 V, 9 A max rating.
Condition: New
Usually Ships Same day or Next Day$13.80
Sale Price
$11.50
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210341 The knife-disconnect terminal block features a nominal voltage of 400 V and a maximum current capacity of 9 A at both the first and second levels of connection. It uses a push-in connection method with rated cross sections ranging from 0.14 mm2 to 1.5 mm2, while it can accommodate various cross-section sizes within this range. The terminal block is mounted using NS 35/7,5 or NS 35/15 mounting systems and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
9 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
The compact design and front connection enable wiring in a confined space

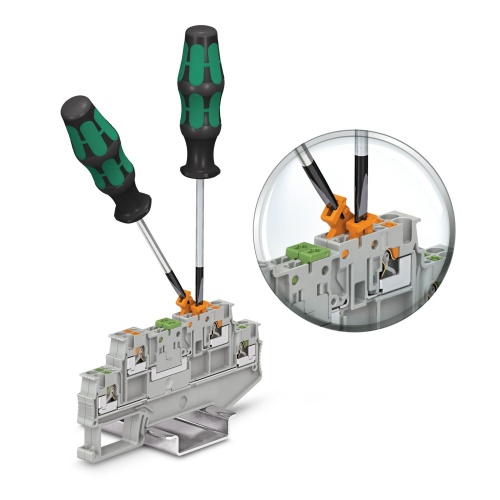

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Convenient separation of circuits, thanks to lever-type disconnect knife
Clear identification of the disconnect point, thanks to color highlighting
Downloads
Phoenix 3210341 CAD data International.dxfPhoenix 3210341 CAD data International.pdfPhoenix 3210341 CAD data International.stpPhoenix 3210341 Manufacturers declaration International-2.pdfPhoenix 3210341 Manufacturers declaration International-3.pdfPhoenix 3210341 Manufacturers declaration International.pdfPhoenix 3210341 Safety note English.pdfPhoenix 3210341 Tender Text English.zip
