Code: 42085

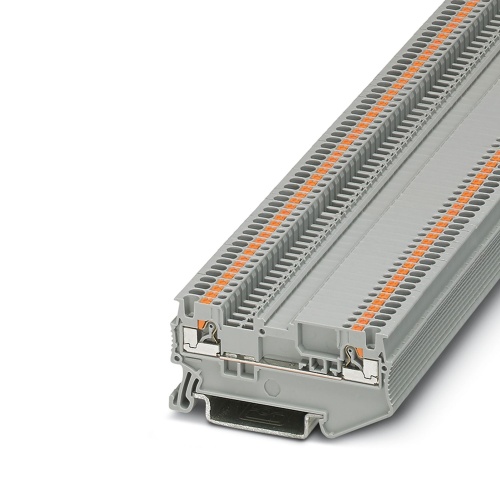

Phoenix Contact 3210308 Feed-through modular terminal block PT 1,5/S-MTD
Normally In Stock
PT 1,5/S-MTD Phoenix Contact 3210308 Knife disconnect Terminal Block - PT 1,5/S-MTD Push-In Connection 1 Level 3.5 mm with 2 Connections. Not Grounded, Not Fused Gray. 400 V, 17.5 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.75
Sale Price
$1.46
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210308 The modular terminal block has a similar shape to the disconnect terminal block and is designed for feed-through applications, with a nominal voltage of 400V and a nominal current capacity of 17.5A at one level. The connection method involves pushing wires into place via a push-in connection system, with rated cross-sections ranging from 0.14mm2 to 1.5mm2. The block is mounted using the NS35/7.5 or NS35/15 mounting type and features a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Width
3.5 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3210308 CAD data International.dxfPhoenix 3210308 CAD data International.pdfPhoenix 3210308 CAD data International.stpPhoenix 3210308 Manufacturers declaration International-2.pdfPhoenix 3210308 Manufacturers declaration International-3.pdfPhoenix 3210308 Manufacturers declaration International.pdfPhoenix 3210308 Safety note English.pdfPhoenix 3210308 Tender Text English.zip
