Code: 42078

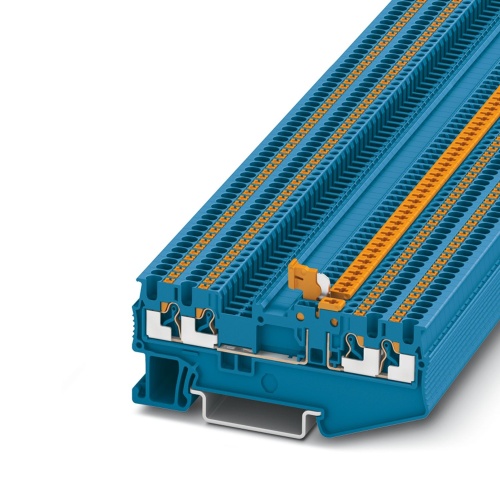

Phoenix Contact 3210322 Knife-disconnect terminal block PT 1,5/S-QUATTRO-MT BU
Normally In Stock
PT 1,5/S-QUATTRO-MT BU Phoenix Contact 3210322 Knife disconnect Terminal Block - PT 1,5/S-QUATTRO-MT BU Push-In Connection 1 Level 3.5 mm with 4 Connections. Not Grounded, Not Fused Blue. 400 V, 10 A max rating.
Condition: New
Usually Ships Same day or Next Day$5.93
Sale Price
$4.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210322 A knife-disconnect terminal block with a nominal voltage of 400 V and a nominal current capacity of 10 A is available, featuring push-in connection method, rated for cross sections between 0.14 mm² to 1.5 mm², and mounting options including NS 35/7.5 and NS 35/15, distinguished by its blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Width
3.5 mm
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
10 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
Convenient separation of circuits, thanks to lever-type disconnect knife
Downloads
Phoenix 3210322 CAD data International.dxfPhoenix 3210322 CAD data International.pdfPhoenix 3210322 CAD data International.stpPhoenix 3210322 Manufacturers declaration International-2.pdfPhoenix 3210322 Manufacturers declaration International-3.pdfPhoenix 3210322 Manufacturers declaration International.pdfPhoenix 3210322 Safety note English.pdfPhoenix 3210322 Tender Text English.zip
