Code: 42076

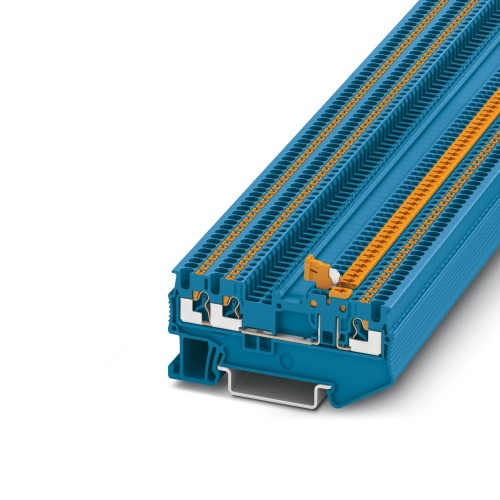

Phoenix Contact 3210312 Knife-disconnect terminal block PT 1,5/S-TWIN-MT BU
Normally In Stock
PT 1,5/S-TWIN-MT BU Phoenix Contact 3210312 Knife disconnect Terminal Block - PT 1,5/S-TWIN-MT BU Push-In Connection 1 Level 3.5 mm with 3 Connections. Not Grounded, Not Fused Blue. 400 V, 10 A max rating.
Condition: New
Usually Ships Same day or Next Day$5.23
Sale Price
$4.36
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210312 The knife-disconnect terminal block features a nominal voltage of 400 V and a maximum current capacity of 10 A. The connection method is push-in, with rated cross-sections ranging from 0.14 mm2 to 1.5 mm2. Available mounting options include NS 35/7.5 and NS 35/15, while the terminal block itself has a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Width
3.5 mm
Terminal Block Number of Connections
3
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
10 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Convenient separation of circuits, thanks to lever-type disconnect knife
Downloads
Phoenix 3210312 CAD data International.dxfPhoenix 3210312 CAD data International.pdfPhoenix 3210312 CAD data International.stpPhoenix 3210312 Manufacturers declaration International-2.pdfPhoenix 3210312 Manufacturers declaration International-3.pdfPhoenix 3210312 Manufacturers declaration International.pdfPhoenix 3210312 Safety note English.pdfPhoenix 3210312 Tender Text English.zip
