Code: 42048

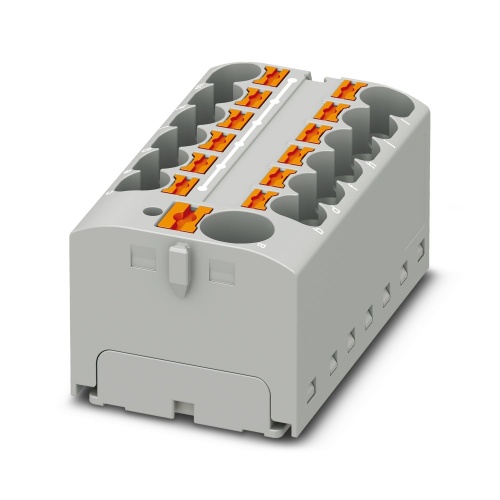

Phoenix Contact 3273878 Distribution block PTFIX 10/12X4 GY
Normally In Stock
PTFIX 10/12X4 GY Phoenix Contact 3273878 Distribution Block - PTFIX 10/12X4 GY Push-In Connection 1 Level 46.3 mm with 13 Connections. Not Grounded, Not Fused Gray. 450 V, 57 A max rating.
Condition: New
Usually Ships Same day or Next Day$6.52
Sale Price
$5.43
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273878 A basic terminal block distribution block features supply and nominal voltage of 450 V, along with a maximum current of 32 A. It has 13 connections available, utilizing push-in connections for load contacts and line contacts, as well as varying cross-sections ranging from 0.2 mm² to 6 mm². The rated cross-sections vary between 10 mm² and 0.5 mm², with mounting options including snapping onto a DIN rail adapter, direct mounting with flange, free-hanging, and a standard gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
13
Terminal Block Width
46.3 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
32 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Fast installation with ready-to-connect distribution blocks and device terminal blocks
Significant space savings due to the minimal size
Flexible mounting options with various mounting adapters and special adhesive versions
Color-coded assignment of conductors and terminal points for intuitive and safe installation
Standardized accessories – the blocks can be extended, tested, and marked with the CLIPLINE complete accessories without any loss of pitch
