Code: 42010

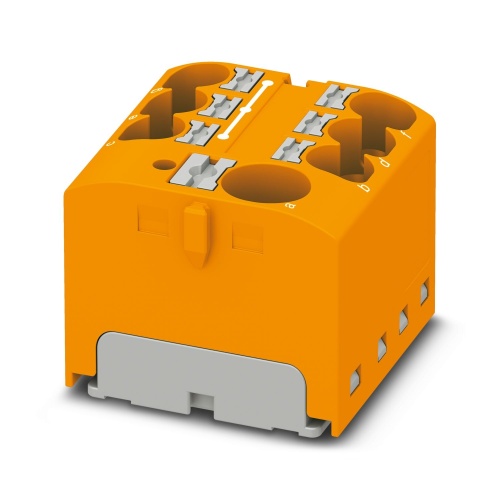

Phoenix Contact 3273874 Distribution block PTFIX 10/6X4 OG
Normally In Stock
PTFIX 10/6X4 OG Phoenix Contact 3273874 Distribution Block - PTFIX 10/6X4 OG Push-In Connection 1 Level 27.9 mm with 7 Connections. Not Grounded, Not Fused Orange. 450 V, 57 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.68
Sale Price
$3.07
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

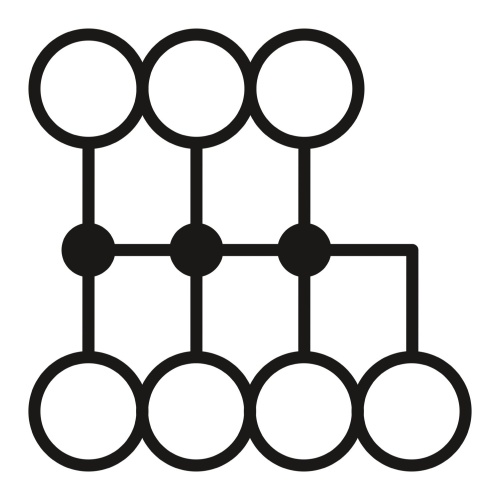

Phoenix Contact 3273874 The distribution block features 7 connections, including push-in and line contacts, rated for different cross sections, ranging from 0.2mm² to 10mm². The nominal voltage is 450V and the current capacity is 41A. Connections can be made using a push-in method or attached to a DIN rail adapter with a flange-mounted design that allows for free-hanging or direct mounting options, available in an orange color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
7
Terminal Block Width
27.9 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Orange
Terminal Block Amperage
32 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Fast installation with ready-to-connect distribution blocks and device terminal blocks
Significant space savings due to the minimal size
Flexible mounting options with various mounting adapters and special adhesive versions
Color-coded assignment of conductors and terminal points for intuitive and safe installation
Standardized accessories – the blocks can be extended, tested, and marked with the CLIPLINE complete accessories without any loss of pitch
Downloads
Phoenix 3273874 CAD data International.dxfPhoenix 3273874 CAD data International.pdfPhoenix 3273874 CAD data International.stpPhoenix 3273874 Manufacturers declaration International-2.pdfPhoenix 3273874 Manufacturers declaration International.pdfPhoenix 3273874 Safety note English.pdfPhoenix 3273874 Tender Text English.zip
