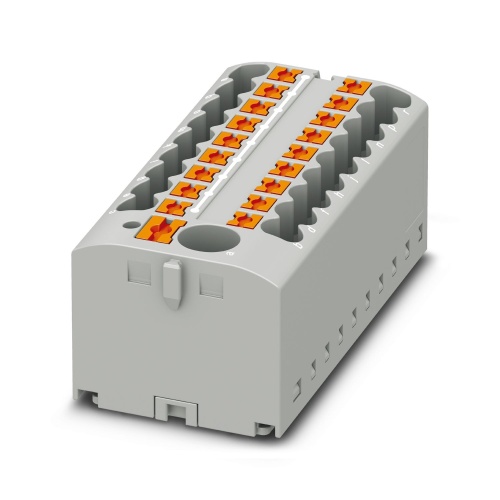

Phoenix Contact 3273374 Distribution block PTFIX 6/18X2,5 GY
Normally In Stock
Code: 41962
PTFIX 6/18X2,5 GY Phoenix Contact 3273374 Distribution Block - PTFIX 6/18X2,5 GY Push-In Connection 1 Level 56.5 mm with 19 Connections. Not Grounded, Not Fused Gray. 450 V, 57 A max rating.
Condition: New
Usually Ships Same day or Next Day$7.26
Sale Price
$6.05
MUST BUY IN PACKS OF 8
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273374 The distribution block features a basic terminal block design that includes a supply circuit with 450V nominal voltage and 24A nominal current, supporting up to 19 connections via push-in connections. The line contact has a rated cross section of 6mm2, while the load contact accommodates a range of 0.14-4mm2 cross sections. Various mounting options are available, including direct mounting with flange, free-hanging, and snapping onto a DIN rail adapter, with the device finished in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
19
Terminal Block Width
56.5 mm
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting

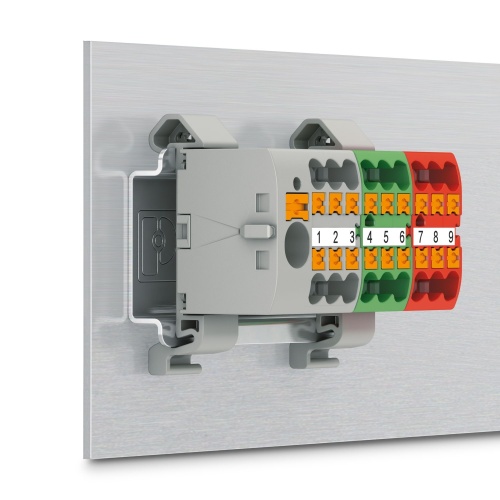

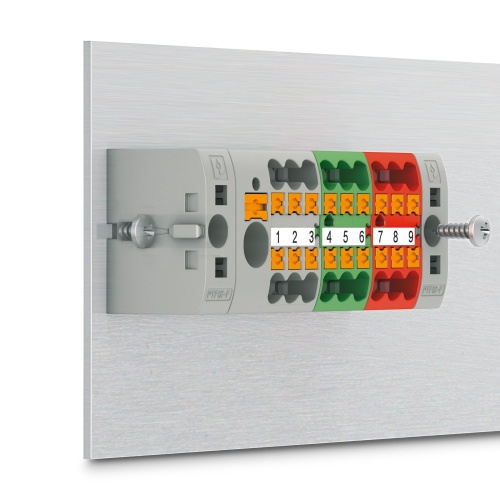

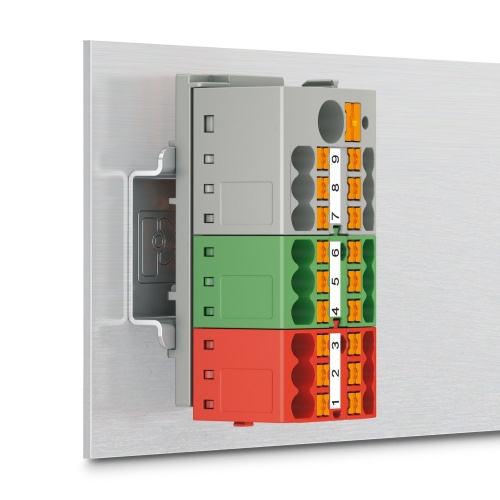

Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Clear wiring, thanks to eleven different color variants
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Downloads
Phoenix 3273374 CAD data International.dxfPhoenix 3273374 CAD data International.pdfPhoenix 3273374 CAD data International.stpPhoenix 3273374 Manufacturers declaration International-2.pdfPhoenix 3273374 Manufacturers declaration International.pdfPhoenix 3273374 Safety note English.pdfPhoenix 3273374 Tender Text English.zip
