Code: 41941

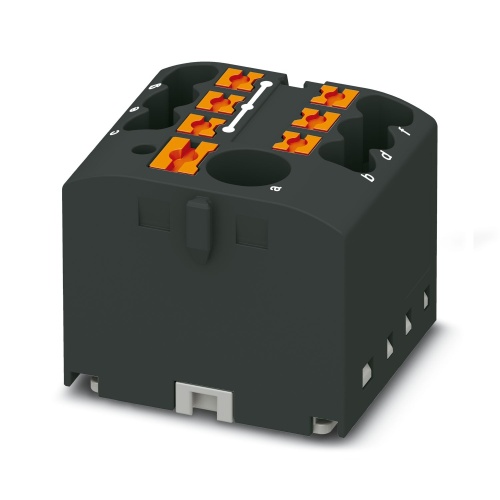

Phoenix Contact 3273344 Distribution block PTFIX 6/6X2,5 BK
Normally In Stock
PTFIX 6/6X2,5 BK Phoenix Contact 3273344 Distribution Block - PTFIX 6/6X2,5 BK Push-In Connection 1 Level 25.6 mm with 7 Connections. Not Grounded, Not Fused Black. 450 V, 57 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.78
Sale Price
$2.32
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273344 The Distribution block features a basic terminal design with supply options, accommodating up to 24 A of nominal current at 450 V and includes seven connection points utilizing push-in connections for the load contact, while line contacts are secured by push-in or snap-in mechanisms with varying cross-sectional ratings ranging from 0.14 mm2 to 4 mm2 for load terminals and 6 mm2 to 10 mm2 for line terminals, offering flexibility in mounting options including snapping onto a DIN rail adapter, direct mounting with a flange, or free-hanging, all typically finished in black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
7
Terminal Block Width
25.6 mm
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Amperage
24 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features

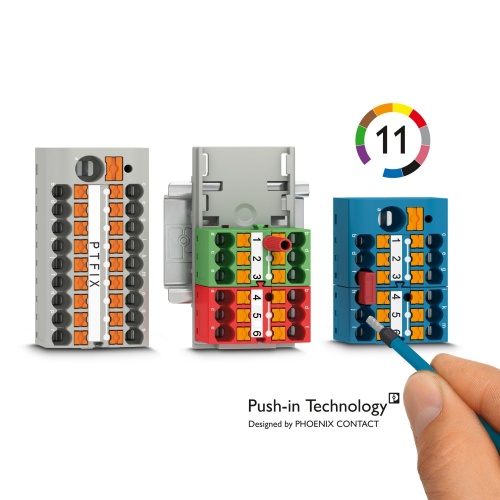

Time-saving conductor connection, thanks to tool-free Push-in direct connection technology

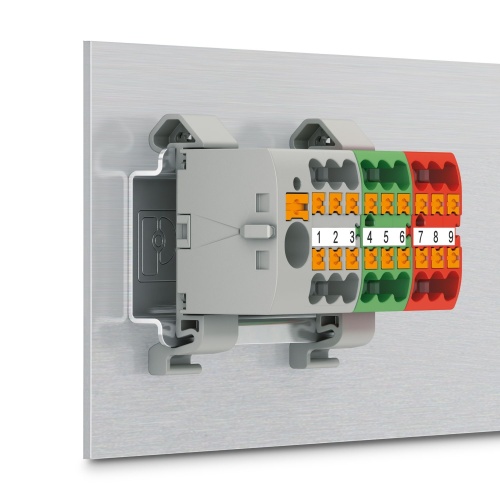

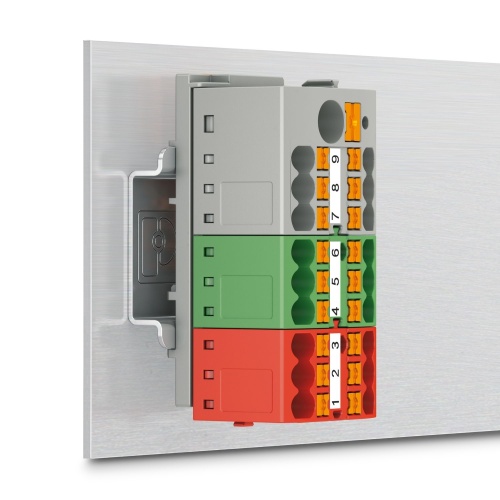

Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Clear wiring, thanks to eleven different color variants
Downloads
Phoenix 3273344 CAD data International.dxfPhoenix 3273344 CAD data International.pdfPhoenix 3273344 CAD data International.stpPhoenix 3273344 Manufacturers declaration International-2.pdfPhoenix 3273344 Manufacturers declaration International.pdfPhoenix 3273344 Safety note English.pdfPhoenix 3273344 Tender Text English.zip
