Code: 41940
Phoenix Contact 3273342 Distribution block PTFIX 6/6X2,5 WH
Normally In Stock
PTFIX 6/6X2,5 WH Phoenix Contact 3273342 Distribution Block - PTFIX 6/6X2,5 WH Push-In Connection 1 Level 25.6 mm with 7 Connections. Not Grounded, Not Fused White. 450 V, 57 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.78
Sale Price
$2.32
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

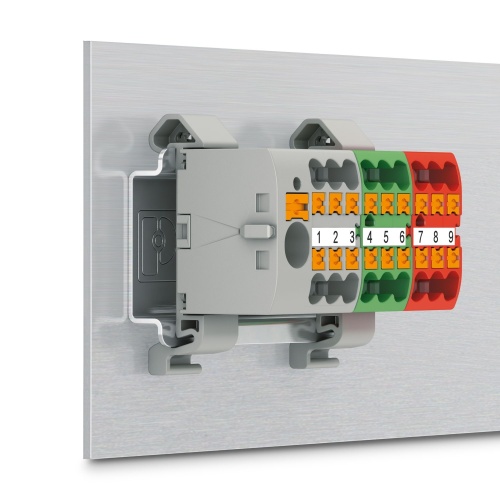

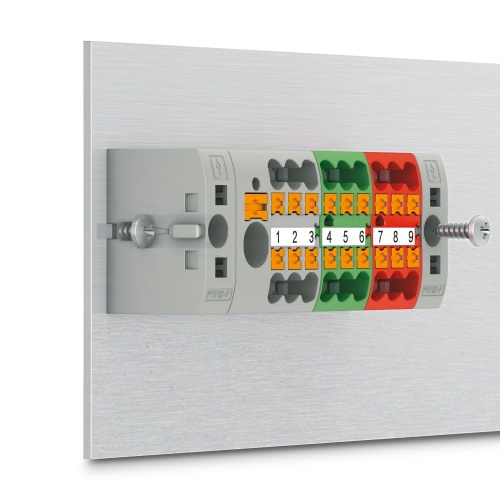

Phoenix Contact 3273342 The distribution block features a basic terminal design with a supply voltage of 450V and a nominal current capacity of 24A. It has seven push-in connections, one load contact, and varying cross-sectional areas ranging from 0.14mm² to 4mm² for the push-in connections and up to 10mm² for the line contacts. The block can be mounted in three ways: by snapping onto a DIN rail adapter, using direct mounting with a flange, or free-hanging, with an optional white color option available.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
7
Terminal Block Width
25.6 mm
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
White
Terminal Block Amperage
24 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Clear wiring, thanks to eleven different color variants
Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Downloads
Phoenix 3273342 CAD data International.dxfPhoenix 3273342 CAD data International.pdfPhoenix 3273342 CAD data International.stpPhoenix 3273342 Manufacturers declaration International-2.pdfPhoenix 3273342 Manufacturers declaration International.pdfPhoenix 3273342 Safety note English.pdfPhoenix 3273342 Tender Text English.zip
