Code: 41938

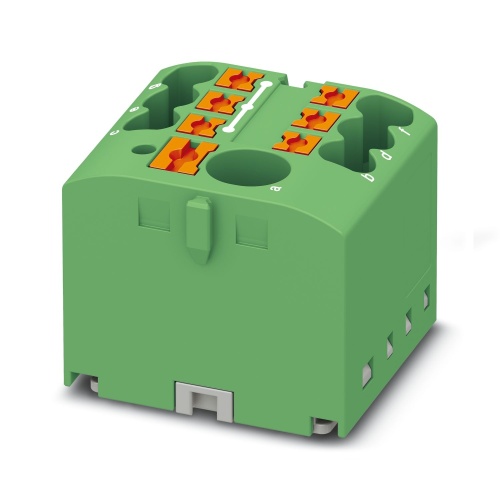

Phoenix Contact 3273338 Distribution block PTFIX 6/6X2,5 GN
Normally In Stock
PTFIX 6/6X2,5 GN Phoenix Contact 3273338 Distribution Block - PTFIX 6/6X2,5 GN Push-In Connection 1 Level 25.6 mm with 7 Connections. Not Grounded, Not Fused Green. 450 V, 57 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.78
Sale Price
$2.32
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273338 The distribution block features a basic terminal block configuration with a nominal voltage of 450V and a maximum current capacity of 24A, accommodating up to seven connections through push-in connection points. The load contact has a smaller cross-sectional area ranging from 0.14mm² to 4mm², while the line contact accommodates larger wires with cross-sections between 6mm² and 10mm², offering flexibility in terms of wire size and type. The distribution block can be mounted using three distinct methods: snapping onto a DIN rail adapter, direct mounting with a flange, or free-hanging, and is distinguished by its green color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
7
Terminal Block Width
25.6 mm
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Green
Terminal Block Amperage
24 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features

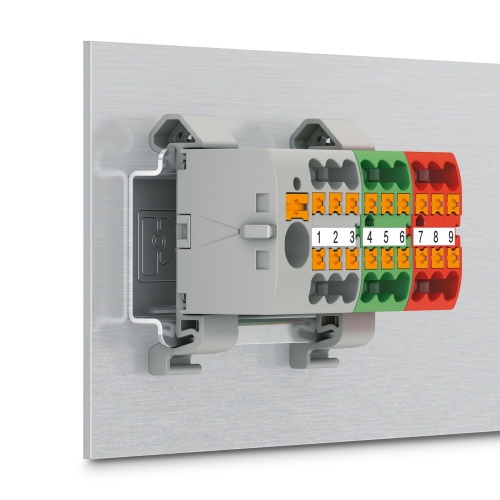

Space savings of up to 50 % on the DIN rail, thanks to transverse mounting

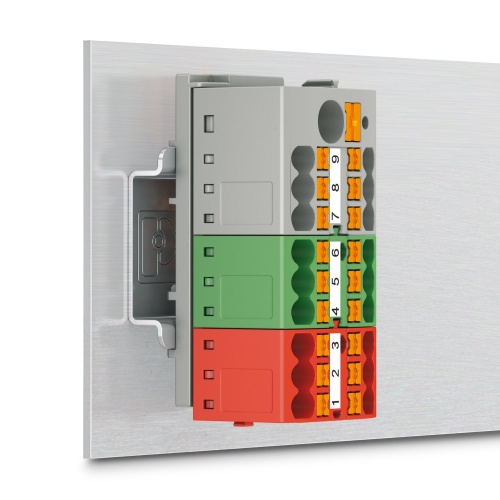

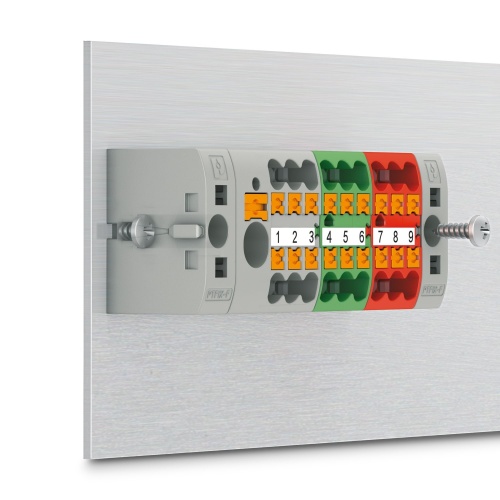

Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Clear wiring, thanks to eleven different color variants
Downloads
Phoenix 3273338 CAD data International.dxfPhoenix 3273338 CAD data International.pdfPhoenix 3273338 CAD data International.stpPhoenix 3273338 Manufacturers declaration International-2.pdfPhoenix 3273338 Manufacturers declaration International.pdfPhoenix 3273338 Safety note English.pdfPhoenix 3273338 Tender Text English.zip
