Code: 41936

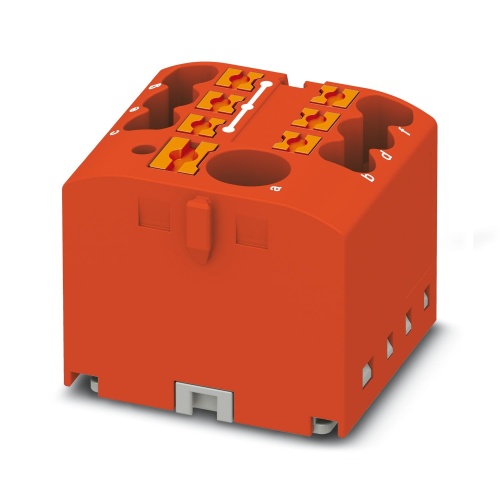

Phoenix Contact 3273334 Distribution block PTFIX 6/6X2,5 RD
Normally In Stock
PTFIX 6/6X2,5 RD Phoenix Contact 3273334 Distribution Block - PTFIX 6/6X2,5 RD Push-In Connection 1 Level 25.6 mm with 7 Connections. Not Grounded, Not Fused Red. 450 V, 57 A max rating.
Condition: New
Usually Ships Same day or Next Day$2.78
Sale Price
$2.32
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3273334 The distribution block has a basic terminal design featuring supply voltage of 450V and maximum current capacity of 24A, accommodating up to seven connections via push-in connection methods. Available contact configurations include load and line contacts, each having varying rated cross-sections ranging from 0.14mm² to 4mm² for the smaller contacts and 6mm² for the larger ones. Mounting options include direct attachment with a flange, free-hanging suspension, or snapping onto a DIN rail adapter, all available in red color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
7
Terminal Block Width
25.6 mm
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Red
Terminal Block Amperage
24 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging

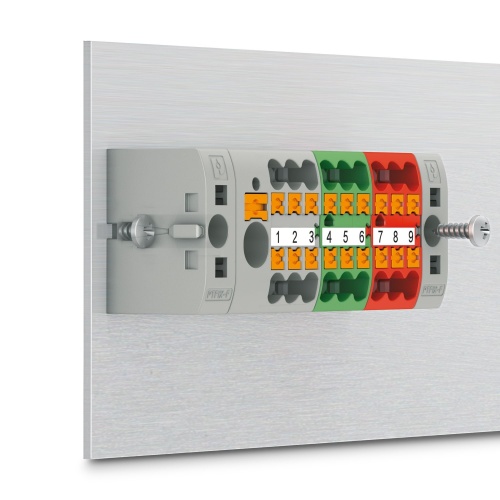

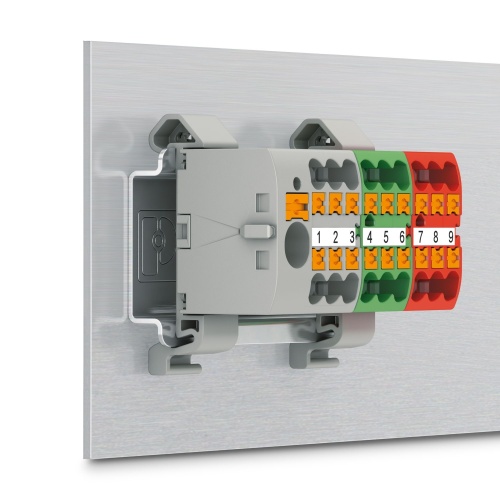

Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Clear wiring, thanks to eleven different color variants

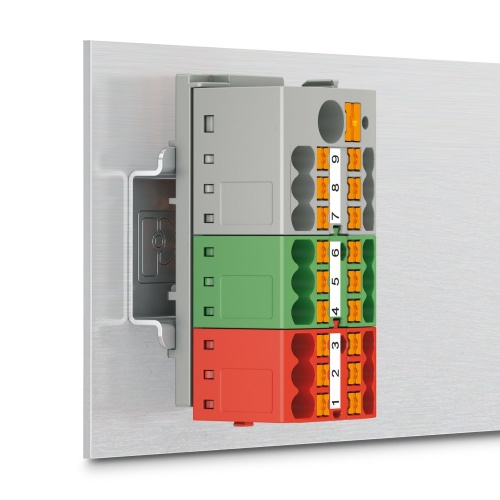

Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Downloads
Phoenix 3273334 CAD data International.dxfPhoenix 3273334 CAD data International.pdfPhoenix 3273334 CAD data International.stpPhoenix 3273334 Manufacturers declaration International-2.pdfPhoenix 3273334 Manufacturers declaration International.pdfPhoenix 3273334 Safety note English.pdfPhoenix 3273334 Tender Text English.zip
