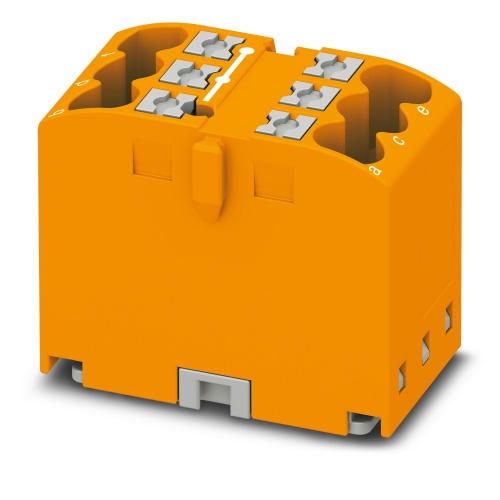

Phoenix Contact 3273282 Distribution block PTFIX 6X2,5 OG
Normally In Stock
Code: 41906
PTFIX 6X2,5 OG Phoenix Contact 3273282 Distribution Block - PTFIX 6X2,5 OG Push-In Connection 1 Level 16 mm with 6 Connections. Not Grounded, Not Fused Orange. 450 V, 32 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.16
Sale Price
$1.80
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

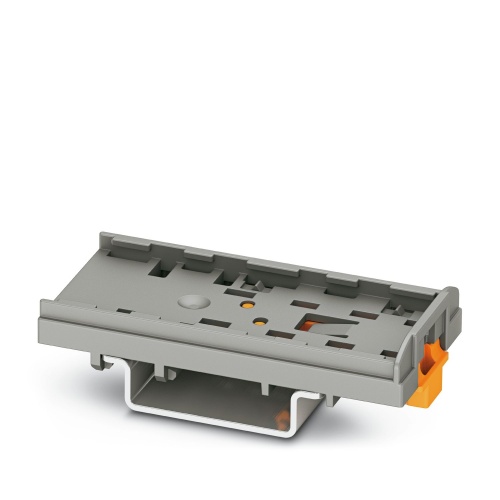

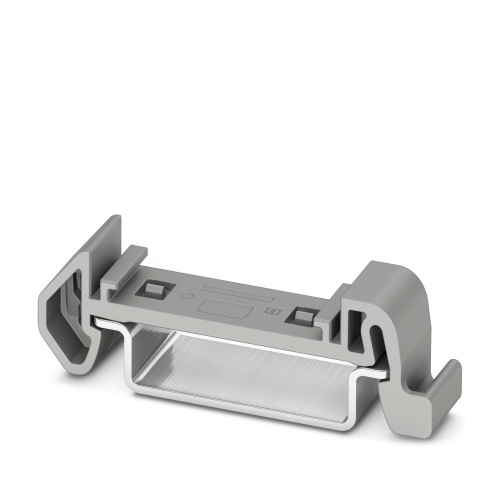

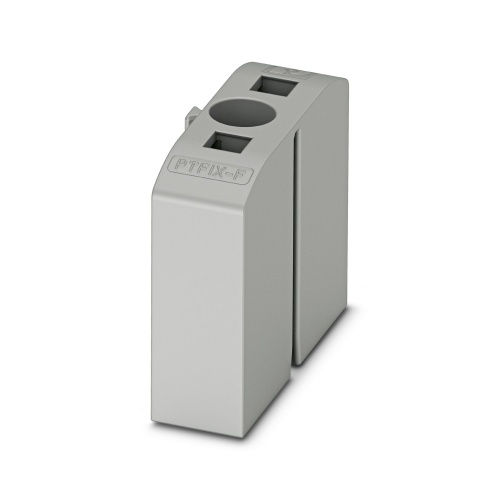

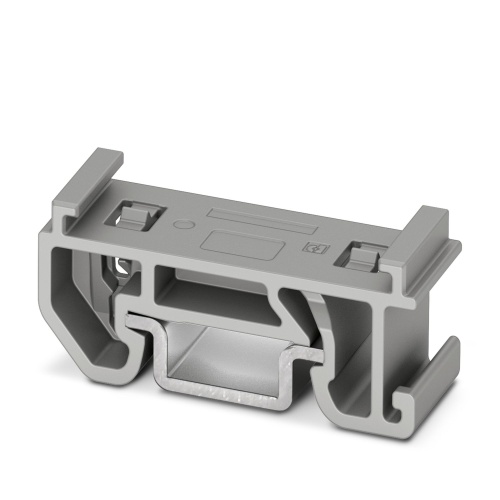

Phoenix Contact 3273282 The distribution block features six push-in connections with varying cross-sectional areas of 0.14 mm² to 4 mm² and is designed for nominal voltages up to 450 V and currents up to 24 A. Its connection method allows for easy installation and mounting options include snapping onto a DIN rail adapter, direct mounting with a flange, or free-hanging, all while boasting an orange color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
16 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
6
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Orange
Terminal Block Amperage
24 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features

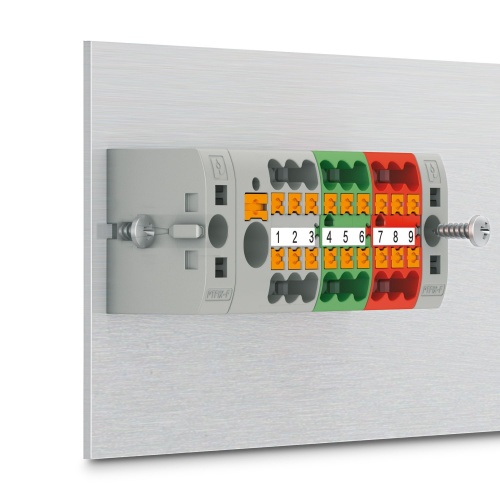

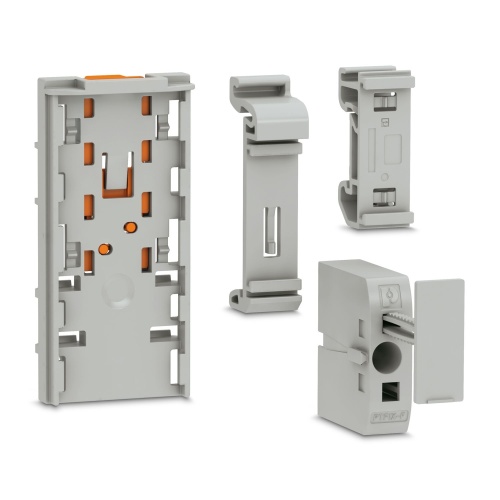

Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
Clear wiring, thanks to eleven different color variants

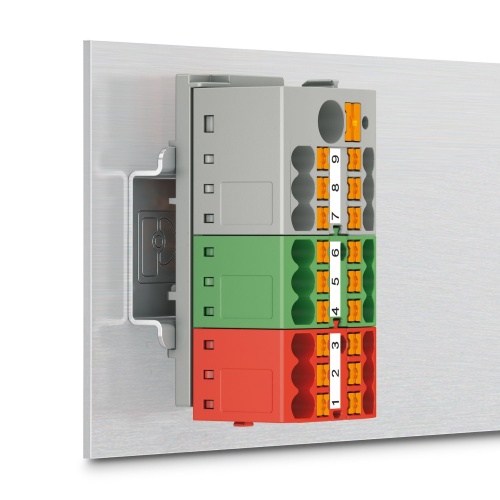

Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Downloads
Phoenix 3273282 CAD data International.dxfPhoenix 3273282 CAD data International.pdfPhoenix 3273282 CAD data International.stpPhoenix 3273282 Manufacturers declaration International-2.pdfPhoenix 3273282 Manufacturers declaration International.pdfPhoenix 3273282 Safety note English.pdfPhoenix 3273282 Tender Text English.zip
