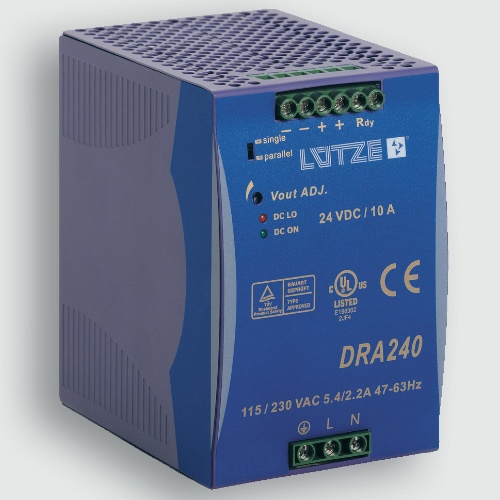

Lutze 722781 DRA240-24A Power Supply 10A, 24V, 240W One Phase
Code: 418812
Lutze 722781 DRA240-24A - Delta Series - 240 Watt - Input: 90 - 132 VAC, 187 - 264 VAC, 210 - 375 VDC - Output: 24 VDC - One Phase - 10 Amp - 47 Hz-63 Hz - Metal - IP20 - Screw Connections - AWG 24-10 - DIN Rail Mount
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.

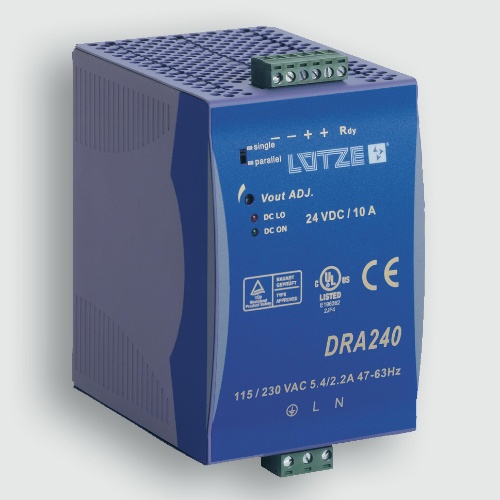

Replacement Products
Description
Lutze 722781 DRA240-24A - The standard Delta series offers an economical yet highly dependable solution, making it a go-to choice for various applications. With an efficiency rate exceeding 92% and low heat dissipation, it not only saves on energy costs but also ensures long-lasting performance. This series provides a wide input voltage range and a versatile output range spanning from 0.75 amps to 20 amps, catering to a range of needs. Its short circuit protection, parallel, and redundant features ensure safety and operational stability. The availability of spring, screw, and pluggable screw terminals enhances flexibility. Moreover, the series boasts a high Mean Time Between Failures (MTBF), is RoHs compliant, UL 508 Listed, and offers NEC Class 2 and multiple Class 1 Div.2 units, underscoring its comprehensive reliability and adherence to industry standards. - 3.3" x 4.9" x 4.6" (HxWxD)
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Voltage Phases
Single Phase
Power Supply Voltage Output
24 VDC
Power Supply Amperage Output
10 Amp
Power Supply Watts (Nominal Power)
240 Watt
Component
Power Supply
Power Supply Low Temperature
-40°C
Manufacturer
Lutze
Power Supply Low Temperature
-40°F
Power Supply Voltage Input
90 - 132 VAC
Power Supply Voltage Input
187 - 264 VAC
Line
Delta Series
Power Supply Voltage Input
210 - 375 VDC
Power Supply High Temperature
71°C
Power Supply High Temperature
159.8°F
Power Supply Connection Type
Screw Connections
