Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

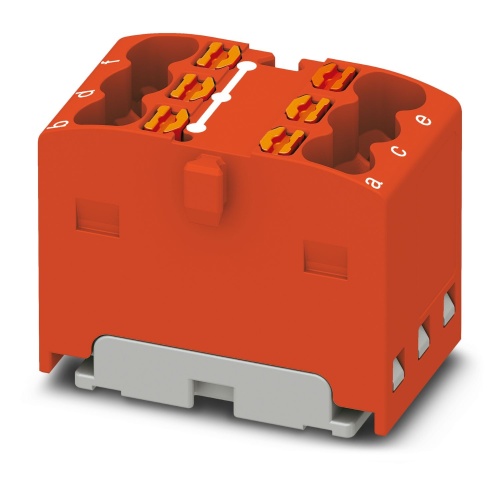

Phoenix Contact 3002765 Distribution block PTFIX 6X1,5 RD
Normally In Stock
Code: 41812
PTFIX 6X1,5 RD Phoenix Contact 3002765 Distribution Block - PTFIX 6X1,5 RD Push-In Connection 1 Level 12.5 mm with 6 Connections. Not Grounded, Not Fused Red. 450 V, 22 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.75
Sale Price
$1.46
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3002765 The distribution block has internal bridging and features nominal voltage and current ratings of 450V and 17.5A respectively. It can be connected via a push-in method and has varying cross-sectional areas between 0.14mm2 to 2.5mm2. The mounting options include snapping onto a DIN rail adapter, direct mounting with a flange, or free-hanging, with the block typically colored red.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
6
Terminal Block Width
12.5 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Red
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Space-saving, thanks to the compact design
Clear arrangement thanks to marking of all terminal points
Flexible use, thanks to direct mounting with flange covers from accessories
Space-saving potential distribution, thanks to compact micro potential distributors
Convenient test options, thanks to test openings at every terminal point
Downloads
Phoenix 3002765 CAD data International.dxfPhoenix 3002765 CAD data International.pdfPhoenix 3002765 CAD data International.stpPhoenix 3002765 Manufacturers declaration International-2.pdfPhoenix 3002765 Manufacturers declaration International.pdfPhoenix 3002765 Safety note English.pdfPhoenix 3002765 Tender Text English.zip
