Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

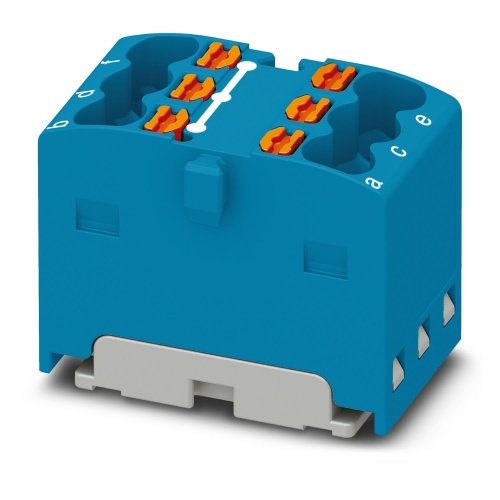

Phoenix Contact 3002761 Distribution block PTFIX 6X1,5 BU
Normally In Stock
Code: 41811
PTFIX 6X1,5 BU Phoenix Contact 3002761 Distribution Block - PTFIX 6X1,5 BU Push-In Connection 1 Level 12.5 mm with 6 Connections. Not Grounded, Not Fused Blue. 450 V, 22 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.75
Sale Price
$1.46
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3002761 The distribution block has a nominal voltage of 450 V and a maximum current capacity of 17.5 A, accommodating up to six connections through push-in connections ranging from 0.14 mm2 to 2.5 mm2 in cross-section, with three mounting options available: direct attachment to a DIN rail adapter via flange, snapping onto the adapter for secure hold, or free-hanging without any additional support, and is available in blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
6
Terminal Block Width
12.5 mm
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Convenient test options, thanks to test openings at every terminal point
Space-saving potential distribution, thanks to compact micro potential distributors
Flexible use, thanks to direct mounting with flange covers from accessories
Space-saving, thanks to the compact design
Clear arrangement thanks to marking of all terminal points
Downloads
Phoenix 3002761 CAD data International.dxfPhoenix 3002761 CAD data International.pdfPhoenix 3002761 CAD data International.stpPhoenix 3002761 Manufacturers declaration International-2.pdfPhoenix 3002761 Manufacturers declaration International.pdfPhoenix 3002761 Safety note English.pdfPhoenix 3002761 Tender Text English.zip
