Code: 41805

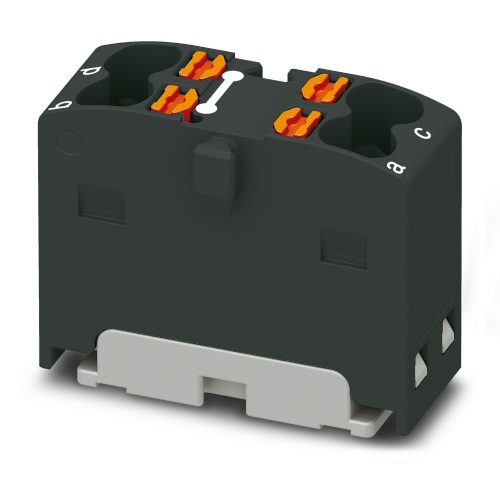

Phoenix Contact 1046616 Distribution block PTFIX 4X1,5 BK
Normally In Stock
PTFIX 4X1,5 BK Phoenix Contact 1046616 Distribution Block - PTFIX 4X1,5 BK Push-In Connection 1 Level 8.3 mm with 4 Connections. Not Grounded, Not Fused Black. 450 V, 22 A max rating.
Condition: New
Usually Ships Same day or Next Day$1.32
Sale Price
$1.10
MUST BUY IN PACKS OF 30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

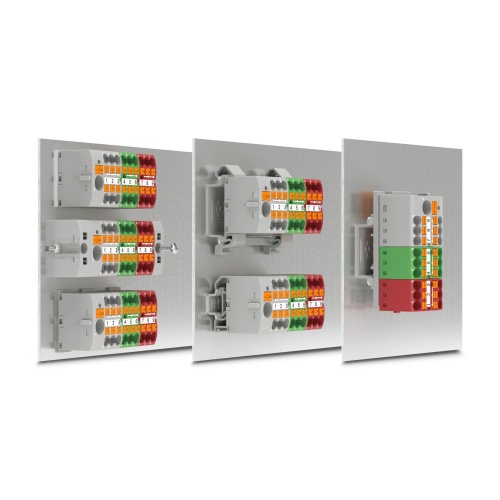

Phoenix Contact 1046616 The distribution block is available in different configurations and can be used in various ways - it's bridged internally, has an internal voltage of 450 V and an internal current of 17.5 A, and features four push-in connections, spanning a range from 0.14 mm² to 2.5 mm² in cross-section, with three mounting options: it can snap onto a DIN rail adapter, be directly mounted with a flange, or be used as a free-hanging component.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Width
8.3 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Convenient test options, thanks to test openings at every terminal point
Space-saving potential distribution, thanks to compact micro potential distributors
Flexible use, thanks to direct mounting with flange covers from accessories
Space-saving, thanks to the compact design
Clear arrangement thanks to marking of all terminal points
Downloads
Phoenix 1046616 CAD data International.dxfPhoenix 1046616 CAD data International.pdfPhoenix 1046616 CAD data International.stpPhoenix 1046616 Manufacturers declaration International-2.pdfPhoenix 1046616 Manufacturers declaration International.pdfPhoenix 1046616 Safety note English.pdfPhoenix 1046616 Tender Text English.zip
