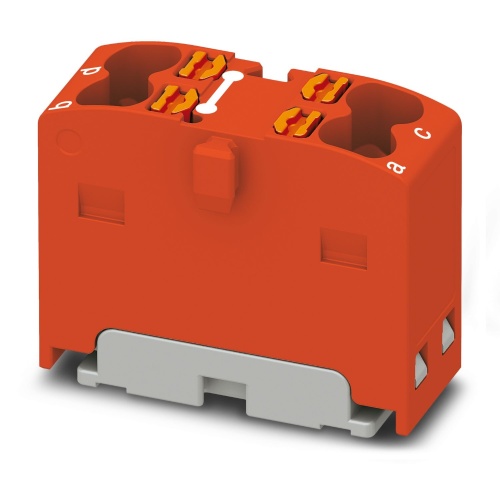

Phoenix Contact 1046611 Distribution block PTFIX 4X1,5 RD
Normally In Stock
Code: 41800
PTFIX 4X1,5 RD Phoenix Contact 1046611 Distribution Block - PTFIX 4X1,5 RD Push-In Connection 1 Level 8.3 mm with 4 Connections. Not Grounded, Not Fused Red. 450 V, 22 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$1.32
Sale Price
$1.10
MUST BUY IN PACKS OF 30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1046611 The product features a distribution block with an internal bridge, spanning 450 volts and delivering up to 17.5 amps of current through four connections, utilizing push-in connections with varying cross-sectional areas between 0.14 mm2 and 2.5 mm2. The device can be mounted directly onto a DIN rail adapter, snapped onto for secure fitment, or hung freely, distinguished by its vibrant red color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Width
8.3 mm
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Red
Terminal Block Max Wire Size
14
Terminal Block Amperage
17.5 Amp
Terminal Block Voltage Rating
450 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Distributor Terminal Block
Features
Clear arrangement thanks to marking of all terminal points
Space-saving, thanks to the compact design
Flexible use, thanks to direct mounting with flange covers from accessories
Space-saving potential distribution, thanks to compact micro potential distributors
Convenient test options, thanks to test openings at every terminal point
Downloads
Phoenix 1046611 CAD data International.dxfPhoenix 1046611 CAD data International.pdfPhoenix 1046611 CAD data International.stpPhoenix 1046611 Manufacturers declaration International-2.pdfPhoenix 1046611 Manufacturers declaration International.pdfPhoenix 1046611 Safety note English.pdfPhoenix 1046611 Tender Text English.zip
