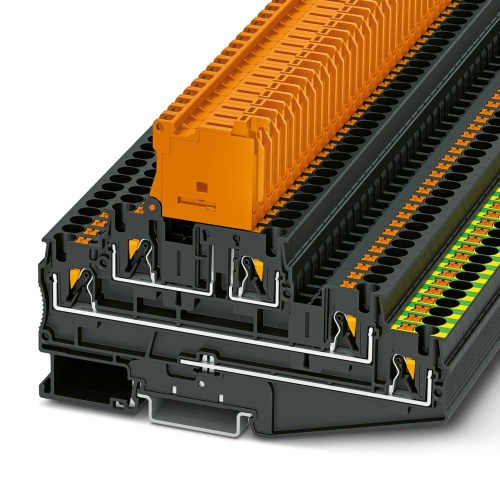

Phoenix Contact 3002606 Lever-type disconnect terminal block PT 4-PE/L/HEDI
Normally In Stock
Code: 41788
PT 4-PE/L/HEDI Phoenix Contact 3002606 Lever-type disconnect Terminal Block - PT 4-PE/L/HEDI Push-In Connection 1 Level 6.2 mm with 5 Connections. Not Grounded, Not Fused Black. 500 V, 20 A max rating.
Condition: New
Usually Ships Same day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$23.32
Sale Price
$19.43
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3002606 A lever-type disconnect terminal block is available with a nominal voltage of 500 V and a maximum current capacity of 30 A. The connection method is push-in, allowing for easy installation and removal. The cross-sectional area can range from 0.2 mm² to 6 mm², also using the push-in connection method. Two different mounting options are offered: NS35/7.5 and NS35/15. Additionally, the terminal block features a black color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
3
Terminal Block Number of Connections
5
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Amperage
30 Amp
Terminal Block Disconnect
Lever-Type Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Lever-Type Disconnect Terminal Block
Features
Easy and tool-free direct plug-in thanks to push-in multi-conductor connection
