Code: 41785

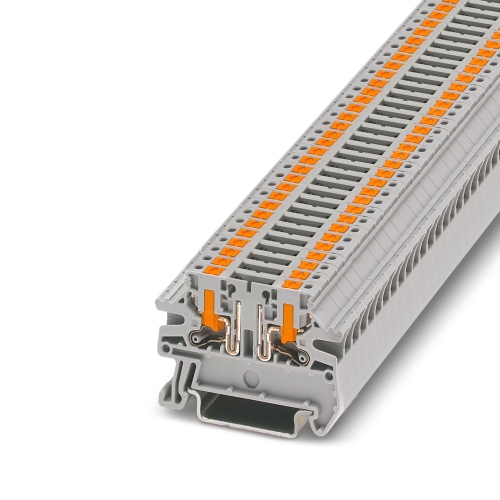

Phoenix Contact 1079061 Disconnect terminal block PTVC 2,5-TG
Normally In Stock
PTVC 2,5-TG Phoenix Contact 1079061 Disconnect Terminal Block - PTVC 2,5-TG Push-In Connection 1 Level 5.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 400 V, 20 A max rating.
Condition: New
Usually Ships Same day or Next Day$3.49
Sale Price
$2.91
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1079061 When connecting the device, the terminal block should be disconnected to determine the current and voltage by using a specific plug, with a nominal voltage of 400V and a nominal current of 20A. The connection method is via push-in, and the rated cross-section is 2.5mm², while the actual cross-section can range from 0.14mm² to 4mm². Additionally, the device is mounted using NS35/7.5 or NS35/15 fittings, and it has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features

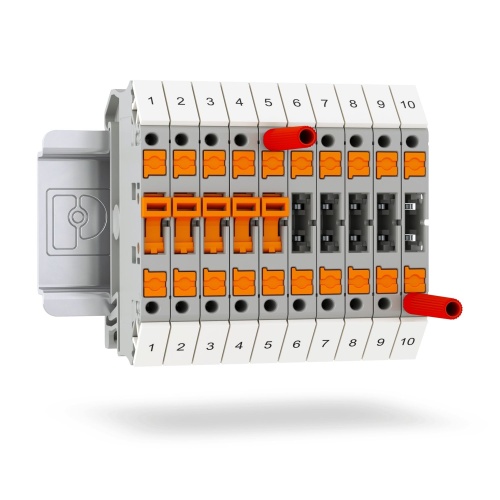

Clear wiring, thanks to lateral conductor entry
The compact design enables wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system
In addition to the testing option, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 1079061 CAD data International.dxfPhoenix 1079061 CAD data International.pdfPhoenix 1079061 CAD data International.stpPhoenix 1079061 Manufacturers declaration International-2.pdfPhoenix 1079061 Manufacturers declaration International.pdfPhoenix 1079061 Safety note English.pdfPhoenix 1079061 Tender Text English.zip
