Code: 41784

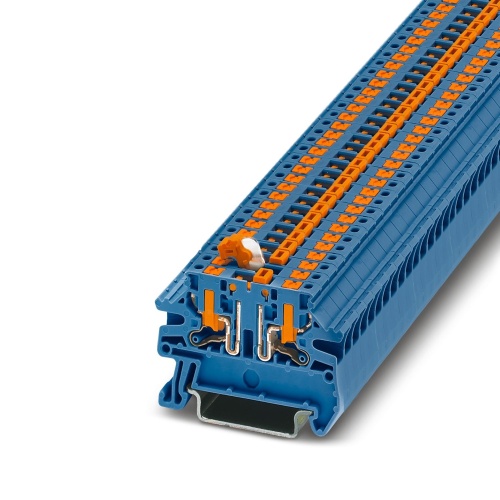

Phoenix Contact 1079060 Knife-disconnect terminal block PTVC 2,5-MT BU
Normally In Stock
PTVC 2,5-MT BU Phoenix Contact 1079060 Knife disconnect Terminal Block - PTVC 2,5-MT BU Push-In Connection 1 Level 5.2 mm with 2 Connections. Not Grounded, Not Fused Blue. 400 V, 20 A max rating.
Condition: New
Usually Ships Same day or Next Day$4.98
Sale Price
$4.15
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1079060 The knife-disconnect terminal block has a nominal voltage of 400 V and a nominal current capacity of 20 A, featuring a push-in connection method. It is rated for cross sections ranging from 0.14 mm2 to 4 mm2, with the actual mounting type being NS 35/7,5 or NS 35/15, and is characterized by its blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
The secure end position of the lever-type disconnect knife ensures that the switching states of the knife disconnect terminal blocks are permanently secured and are always clearly recognizable
The circuits can be opened easily with a standard screwdriver
Clear wiring, thanks to lateral conductor entry
The compact design enables wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
