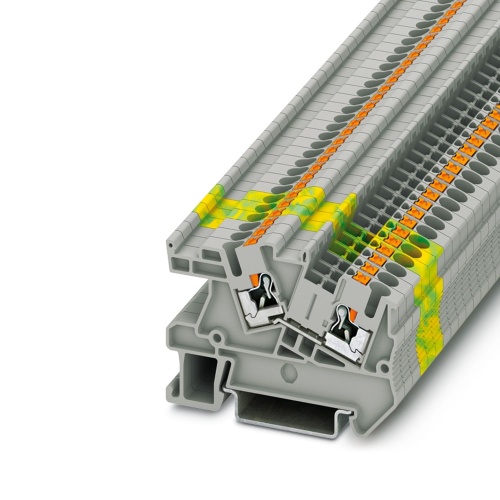

Phoenix Contact 3213962 Installation protective conductor terminal block PTI 2,5-PE
Normally In Stock
Code: 41746
PTI 2,5-PE Phoenix Contact 3213962 Installation ground Terminal Block - PTI 2,5-PE Push-In Connection 1 Level 5.2 mm with 2 Connections. Grounded, Not Fused Green-Yellow. 800 V, max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$6.95
Sale Price
$5.79
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213962 The installation protective conductor terminal block is designed for use with a nominal voltage of 800V and a maximum nominal current of 24A, featuring push-in connections for easy installation. It has one level of connection points rated for cross sections ranging from 0.14mm² to 4mm², suitable for mounting types NS 35/7.5 and NS 35/15, with a color code of green-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Installation Ground Terminal Block
Features
Same shape and pitch as the feed-through terminal blocks
Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail
All the requirements of standard IEC 60947-7-2 are met
