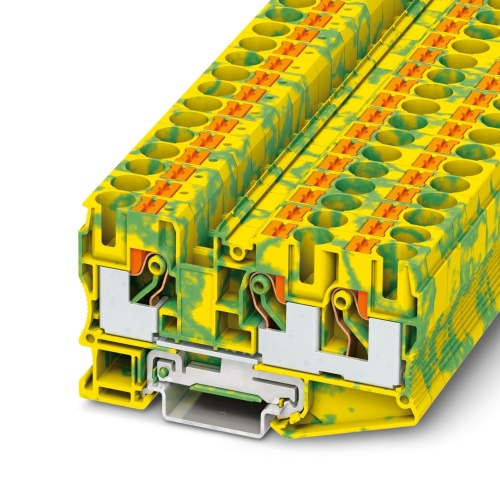

Phoenix Contact 3208745 Protective conductor terminal block PT 10-TWIN-PE
Normally In Stock
Code: 41707
PT 10-TWIN-PE Phoenix Contact 3208745 Ground modular Terminal Block - PT 10-TWIN-PE Push-In Connection 1 Level 10.2 mm with 2 Connections. Grounded, Not Fused Green-Yellow. , max rating.
Condition: New
Usually Ships Same day or Next Day$13.43
Sale Price
$11.19
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3208745 The protective conductor terminal block has three push-in connections with rated cross sections ranging from 0.5 to 16 mm² and is mounted using the NS 35/7.5 or NS 35/15 type, while also being identified by a distinctive green-yellow color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Grounded
Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
6
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
Tested for railway applications
Downloads
Phoenix 3208745 CAD data International.dxfPhoenix 3208745 CAD data International.pdfPhoenix 3208745 CAD data International.stpPhoenix 3208745 Certification English.pdfPhoenix 3208745 Certification International.pdfPhoenix 3208745 Manufacturers declaration International-2.pdfPhoenix 3208745 Manufacturers declaration International-3.pdfPhoenix 3208745 Manufacturers declaration International.pdfPhoenix 3208745 Safety note English.pdfPhoenix 3208745 Tender Text English.zipPhoenix 3208745 User instructions for the Ex Area International.pdf
