Code: 41706

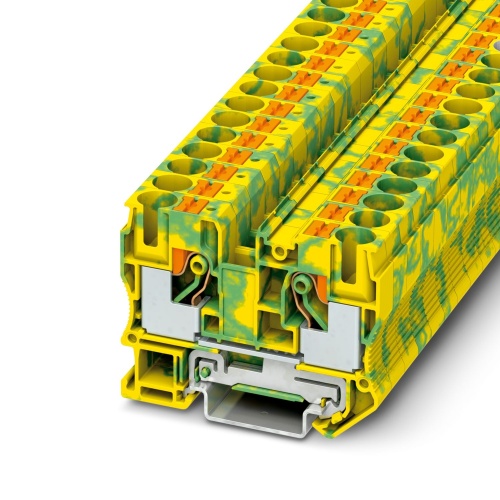

Phoenix Contact 3212131 Protective conductor terminal block PT 10-PE
Normally In Stock
PT 10-PE Phoenix Contact 3212131 Ground modular Terminal Block - PT 10-PE Push-In Connection 1 Level 10.2 mm with 2 Connections. Grounded, Not Fused Green-Yellow. , max rating.
Condition: New
Usually Ships Same day or Next Day$10.42
Sale Price
$8.68
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212131 A protective conductor terminal block is available with a specified number of connections, utilizing a push-in connection method. It has rated cross-sections ranging from 0.5 to 16 mm2 and is mounted using the NS 35/7.5 or NS 35/15 type. The product is further distinguished by its color, which is green-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
6
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Model Type
PT
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3212131 CAD data International.dxfPhoenix 3212131 CAD data International.pdfPhoenix 3212131 CAD data International.stpPhoenix 3212131 Certification English.pdfPhoenix 3212131 Certification International.pdfPhoenix 3212131 Manufacturers declaration International-2.pdfPhoenix 3212131 Manufacturers declaration International-3.pdfPhoenix 3212131 Manufacturers declaration International.pdfPhoenix 3212131 Safety note English.pdfPhoenix 3212131 Tender Text English.zipPhoenix 3212131 User instructions for the Ex Area International.pdf
