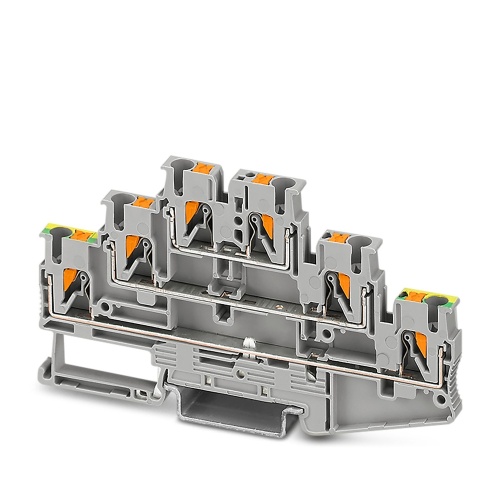

Phoenix Contact 3210541 Multi-level terminal block PT 2,5-PE/L/L
Normally In Stock
Code: 41690
PT 2,5-PE/L/L Phoenix Contact 3210541 Ground modular Terminal Block - PT 2,5-PE/L/L Push-In Connection 1 Level 5.2 mm with 2 Connections. Grounded, Not Fused Gray. 500 V, 24 A max rating.
Condition: New
Usually Ships Same day or Next Day$10.74
Sale Price
$8.95
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

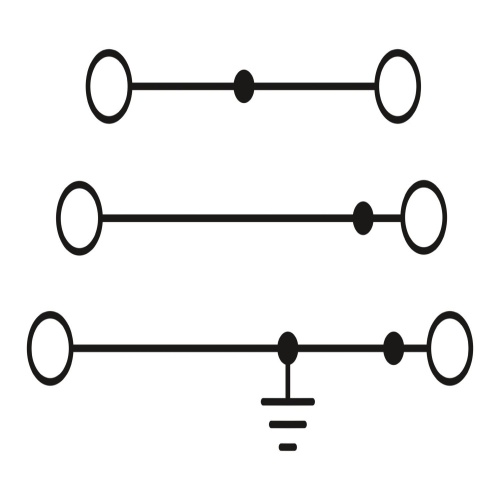

Phoenix Contact 3210541 The terminal block features a multi-level design with six connections, utilizing push-in connections at the first, second, and third levels. The rated cross-sectional area is 2.5mm², while the actual cross-section ranges from 0.14mm² to 4mm². The mounting type includes NS35/7.5 and NS35/15 models, with a standard gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 3210541 CAD data International.dxfPhoenix 3210541 CAD data International.pdfPhoenix 3210541 CAD data International.stpPhoenix 3210541 Manufacturers declaration International-2.pdfPhoenix 3210541 Manufacturers declaration International-3.pdfPhoenix 3210541 Manufacturers declaration International.pdfPhoenix 3210541 Safety note English.pdfPhoenix 3210541 Tender Text English.zip
