Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 41673

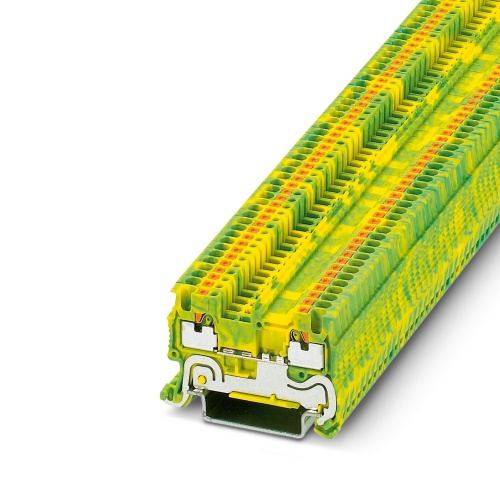

Phoenix Contact 3208139 Protective conductor terminal block PT 1,5/S-PE
Normally In Stock
PT 1,5/S-PE Phoenix Contact 3208139 Ground modular Terminal Block - PT 1,5/S-PE Push-In Connection 1 Level 3.5 mm with 2 Connections. Grounded, Not Fused Green-Yellow. , max rating.
Condition: New
Usually Ships Same day or Next Day$5.58
Sale Price
$4.65
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3208139 The protective conductor terminal block has a specific configuration for connections, with two points of attachment using push-in connections at one level. The cross-sectional area of the wires can range from 0.14 mm2 to 1.5 mm2, and it is mounted using either NS35/7,5 or NS35/15 brackets, while the terminal block itself is colored green-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Width
3.5 mm
Terminal Block Grounded
Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
14
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Model Type
PT
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
Downloads
Phoenix 3208139 CAD data International.dxfPhoenix 3208139 CAD data International.pdfPhoenix 3208139 CAD data International.stpPhoenix 3208139 Certification English.pdfPhoenix 3208139 Certification International.pdfPhoenix 3208139 Manufacturers declaration International-2.pdfPhoenix 3208139 Manufacturers declaration International-3.pdfPhoenix 3208139 Manufacturers declaration International-4.pdfPhoenix 3208139 Manufacturers declaration International-5.pdfPhoenix 3208139 Manufacturers declaration International.pdfPhoenix 3208139 Product Information English.pdfPhoenix 3208139 Safety note English.pdfPhoenix 3208139 Tender Text English.zipPhoenix 3208139 User instructions for the Ex Area International.pdf
