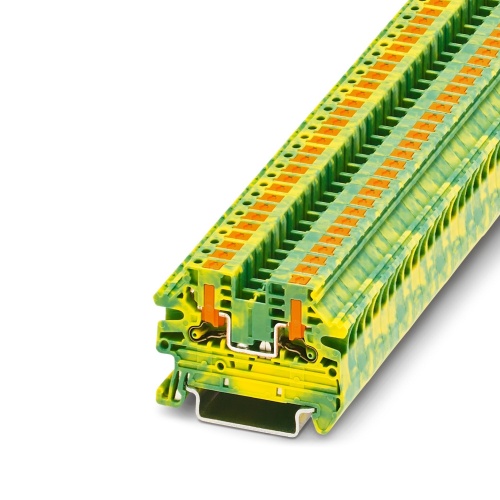

Phoenix Contact 1078963 Protective conductor terminal block PTV 2,5-PE
Normally In Stock
Code: 41669
PTV 2,5-PE Phoenix Contact 1078963 Ground modular Terminal Block - PTV 2,5-PE Push-In Connection 1 Level 5.2 mm with 2 Connections. Grounded, Not Fused Green-Yellow. , max rating.
Condition: New
Usually Ships Same day or Next Day$6.56
Sale Price
$5.47
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1078963 The protective conductor terminal block has a rated cross-sectional area of 2.5mm² and accepts connections via push-in connection, with available cross-sections ranging from 0.14mm² to 4mm². It is available in two mounting types, NS 35/7,5 and NS 35/15, and features green-yellow coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
Clear wiring, thanks to lateral conductor entry
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system
The compact design enables wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 1078963 CAD data International.dxfPhoenix 1078963 CAD data International.pdfPhoenix 1078963 CAD data International.stpPhoenix 1078963 Manufacturers declaration International-2.pdfPhoenix 1078963 Manufacturers declaration International.pdfPhoenix 1078963 Safety note English.pdfPhoenix 1078963 Tender Text English.zip
