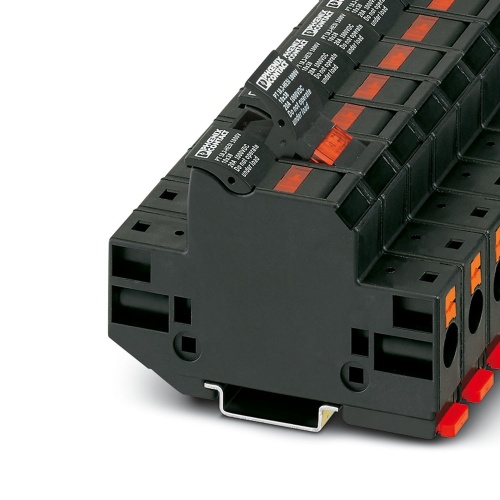

Phoenix Contact 3062143 Fuse holder PT 10,3-HESILED 1000V
Normally In Stock
Code: 41662
PT 10,3-HESILED 1000V Phoenix Contact 3062143 Fuse modular Terminal Block - PT 10,3-HESILED 1000V Push-In Connection 1 Level 17.6 mm with 2 Connections. Not Grounded, Fused Black. 1000 V, 20 A max rating.
Condition: New
Usually Ships Same day or Next Day$19.26
Sale Price
$16.05
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3062143 The fuse holder has dimensions of 10.3 x 38mm and complies with the standard 60269-6. It is designed to handle a nominal voltage of 1000V DC and a maximum current of 20A. The connection method is push-in, while the rated cross-sectional area ranges from 1.5mm2 to 10mm2. The fuse holder is mounted using type NS 35/7.5 or NS 35/15 and has a black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Width
17.6 mm
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Max Wire Size
6
Terminal Block Min Wire Size
16
Terminal Block Fuse Type
Midget - 10.3 X 38
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Fuse holder for fusing PV strings 1000 V DC
Quick identification of faulty fuses regardless of the current direction, thanks to LED status indicator
For 10 x 38 gPV fuse-links in accordance with IEC 60269-6
