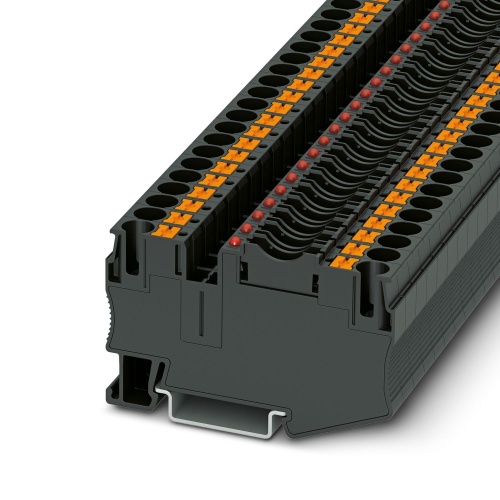

Phoenix Contact 3212172 Fuse modular terminal block PT 6-FSI/C-LED 24
Normally In Stock
Code: 41659
PT 6-FSI/C-LED 24 Phoenix Contact 3212172 Fuse modular Terminal Block - PT 6-FSI/C-LED 24 Push-In Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Fused Black. 24 V, 30 A max rating. *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually Ships Same day or Next Day$21.64
Sale Price
$18.03
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212172 The fuse being considered has a blade-type fuse with a maximum power rating of 2.2W and operates at a nominal voltage of 24V, capable of handling a nominal current of 25A. The connection method is via push-in, while the available cross-sectional areas range from 0.5mm² to 10mm². Mounting options are provided by NS35/7.5 and NS35/15 products, with a color designation of black for this specific terminal block.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Component Color
Black
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
25 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Terminal Block Fuse Type
Type C - Max. 2.2 W
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Quick identification of faulty fuses, thanks to LED status indicator
Convenient testing of fuses with test pick-offs on both sides
The easily accessible fuse inserts are easy to use or replace
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Suitable for all flat-type fuse-links designed according ISO 8820-3 (DIN 72581-3)
