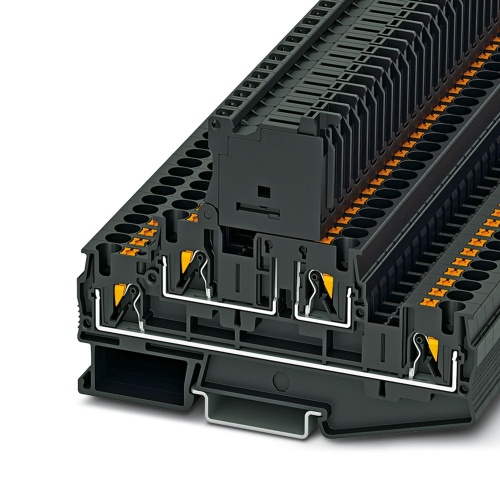

Phoenix Contact 3211888 Fuse modular terminal block PTTB 4-HESILED 24 (5X20)
Normally In Stock
Code: 41650
PTTB 4-HESILED 24 (5X20) Phoenix Contact 3211888 Fuse modular Terminal Block - PTTB 4-HESILED 24 (5X20) Push-In Connection 1 Level 6.2 mm with 2 Connections. Not Grounded, Fused Black. 500 V, 32 A max rating.
Condition: New
Usually Ships Same day or Next Day$19.68
Sale Price
$16.40
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211888 A fuse modular terminal block is available with a glass/ceramic fuse, specifically G type, 5 x 20 in size, rated for 24 V and 28 A nominal current. The connection method is push-in, with two levels of connections offering rated cross sections of 4 mm2, ranging from 0.2 to 6 mm2. This terminal block features a mounting type of NS 35/7.5 or NS 35/15 and has a black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
The easily accessible fuse inserts are easy to use or replace
Convenient testing of fuses with test pick-offs on both sides
Quick identification of faulty fuses, thanks to LED status indicator
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
