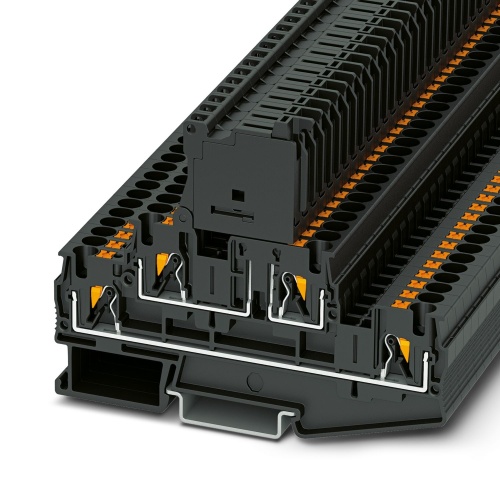

Phoenix Contact 3211886 Fuse modular terminal block PTTB 4-HESI (5X20)
Normally In Stock
Code: 41649
PTTB 4-HESI (5X20) Phoenix Contact 3211886 Fuse modular Terminal Block - PTTB 4-HESI (5X20) Push-In Connection 1 Level 6.2 mm with 2 Connections. Not Grounded, Fused Black. 500 V, 32 A max rating.
Condition: New
Usually Ships Same day or Next Day$8.15
Sale Price
$6.79
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211886 The fuse terminal block is a modular design featuring glass or ceramic fuses in two different configurations, both with a 4mm2 rated cross section and available in a range of cross sections from 0.2 to 6mm2. The push-in connection method allows for easy installation, while the NS35/7.5 and NS35/15 mounting types provide various options for securing the unit.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
