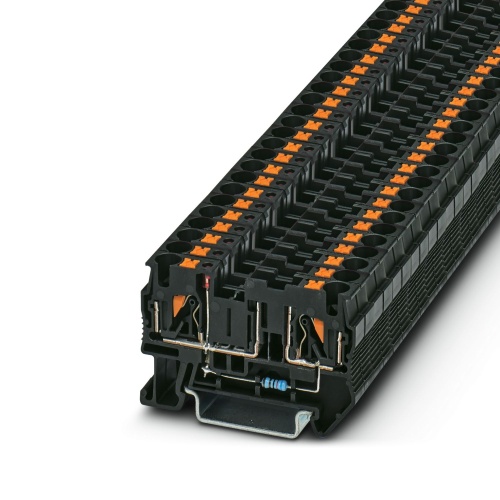

Phoenix Contact 3208951 Fuse modular terminal block PT 4-FSI/F-LED 12
Normally In Stock
Code: 41647
PT 4-FSI/F-LED 12 Phoenix Contact 3208951 Fuse modular Terminal Block - PT 4-FSI/F-LED 12 Push-In Connection 1 Level 6.2 mm with 2 Connections. Not Grounded, Fused Black. 12 V, 15 A max rating.
Condition: New
Usually Ships Same day or Next Day$17.41
Sale Price
$14.51
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3208951 The fuse terminal block features a Blade fuse of ISO 8820-3 Type F (miniature) rated for 12V DC and 10A of nominal current. It has a push-in connection method and comes in two mounting types, NS 35/7,5 and NS 35/15. The fuse's cross-section ranges from 0.2mm² to 6mm², with an overall rated cross-section of 4mm².
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Fuse Type
Type F (Miniature)
Terminal Block Amperage
10 Amp
Terminal Block Voltage Rating
12 Volt
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Convenient testing of fuses with test pick-offs on both sides

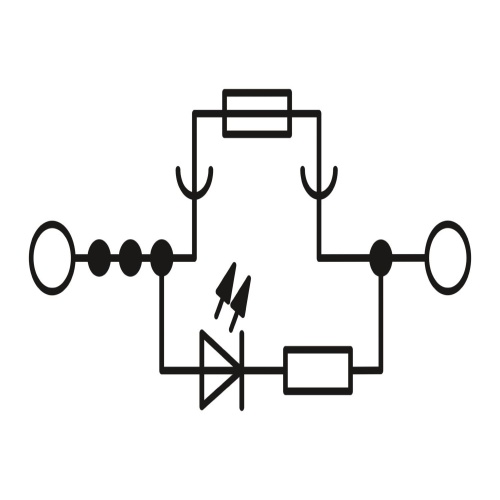

Quick identification of faulty fuses, thanks to LED status indicator
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The easily accessible fuse inserts are easy to use or replace
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
