Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

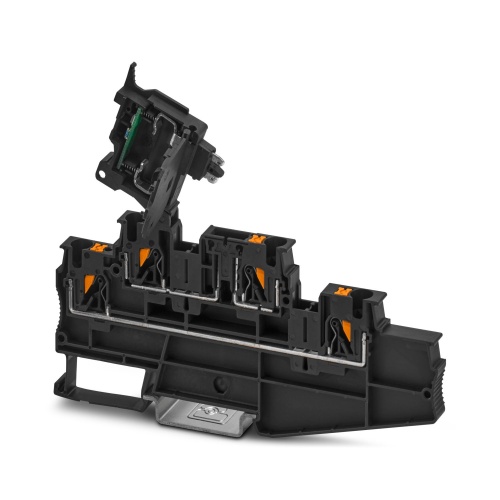

Phoenix Contact 3002609 Fuse modular terminal block PT 4-L/HESILED 24 (5X20)
Normally In Stock
Code: 41637
PT 4-L/HESILED 24 (5X20) Phoenix Contact 3002609 Fuse modular Terminal Block - PT 4-L/HESILED 24 (5X20) Push-In Connection 1 Level 6.2 mm with 2 Connections. Not Grounded, Fused Black. 24 V, 32 A max rating.
Condition: New
Usually Ships Same day or Next Day$20.63
Sale Price
$17.19
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3002609 A fuse terminal block with a glass or ceramic fuse is used for connections up to 24 volts with a maximum current capacity of 28 amps. The terminals have push-in connections and a rated cross-sectional area of 4mm², allowing for connections ranging from 0.2-6mm². These blocks are mounted using the NS35/7.5 or NS35/15 standard and have a black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
3
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Easy and tool-free direct plug-in thanks to push-in multi-conductor connection
