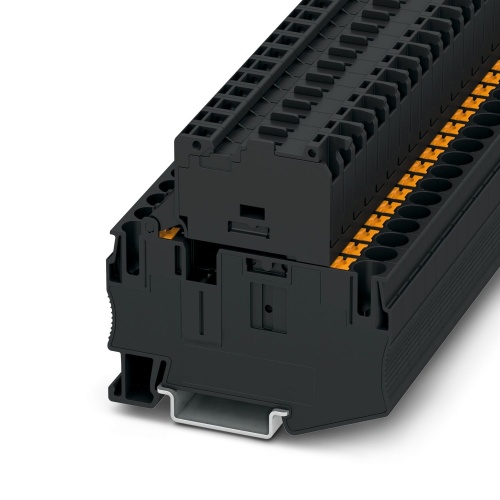

Phoenix Contact 3211868 Fuse modular terminal block PT 6-HESILED 60 (6,3X32)
Normally In Stock
Code: 41635
PT 6-HESILED 60 (6,3X32) Phoenix Contact 3211868 Fuse modular Terminal Block - PT 6-HESILED 60 (6,3X32) Push-In Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Fused Black. 60 V, 10 A max rating.
Condition: New
Usually Ships Same day or Next Day$26.38
Sale Price
$21.98
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211868 The fuse terminal block is a modular component featuring glass or ceramic fuses with a rating of G/6,3 x 32, capable of handling 60V and 10A nominal voltage and current. It uses a push-in connection method and has a rated cross-section of 6mm², allowing for connections between 0.5mm² to 10mm². The fuse is mounted using the NS 35/7,5 or NS 35/15 type, with a standard color of black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
60 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Component Color
Black
Terminal Block Fuse Type
3 X 32
Terminal Block Amperage
10 Amp
Terminal Block Fuse Type
G - 6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features

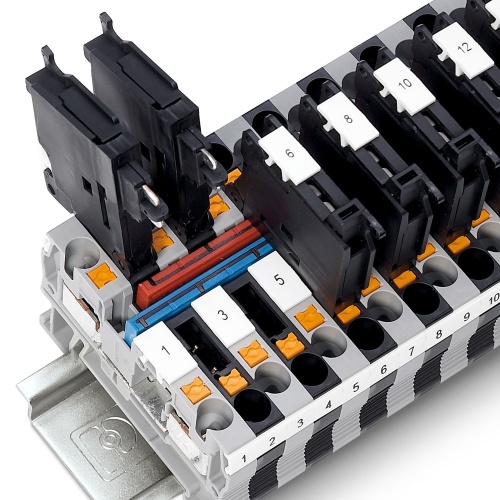

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
