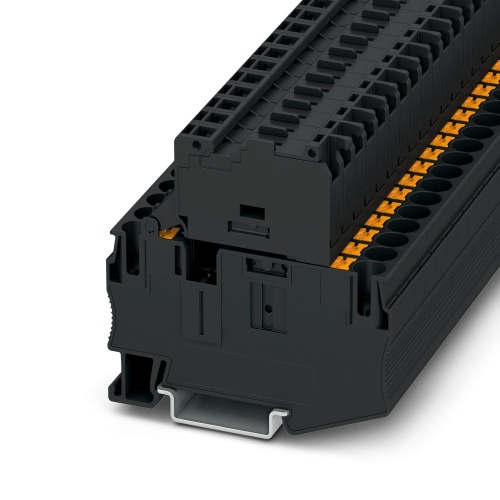

Phoenix Contact 3211874 Fuse modular terminal block PT 6-HESILED 24 (6,3X32)
Normally In Stock
Code: 41633
PT 6-HESILED 24 (6,3X32) Phoenix Contact 3211874 Fuse modular Terminal Block - PT 6-HESILED 24 (6,3X32) Push-In Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Fused Black. 24 V, 10 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$23.09
Sale Price
$19.24
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211874 The fuse terminal block features a glass/ceramic fuse with a rating of G/6,3 x 32 and is designed for use in 24V systems. It has a maximum rated current of 10A and can be connected using a push-in connection method. The cross-sectional area of the conductor is specified between 0.5mm² to 10mm², and it can be mounted on an NS35/7.5 or NS35/15 mounting type. Additionally, this terminal block has a black color and is rated for use with conductors up to 6mm² in cross-section.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Component Color
Black
Terminal Block Fuse Type
3 X 32
Terminal Block Amperage
10 Amp
Terminal Block Fuse Type
G - 6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features

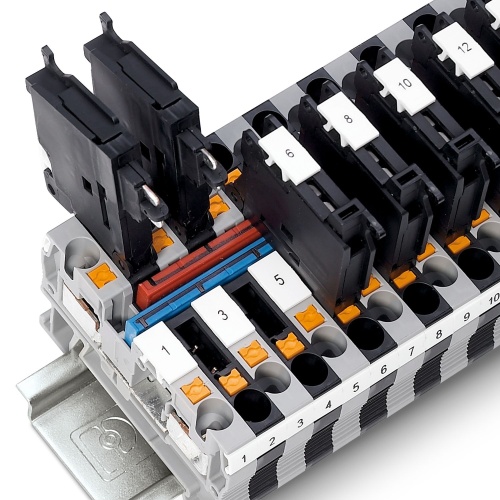

Convenient testing of fuses with test pick-offs on both sides
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Quick identification of faulty fuses, thanks to LED status indicator
The easily accessible fuse inserts are easy to use or replace
