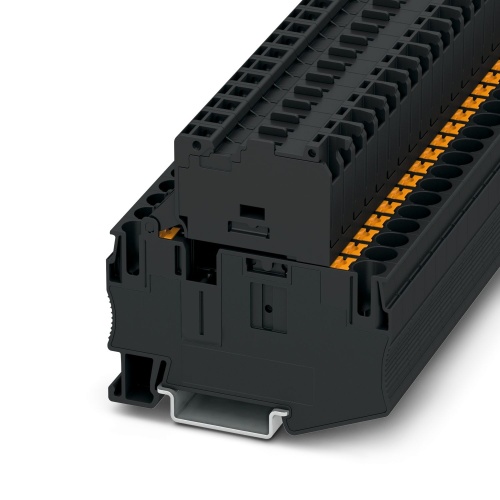

Phoenix Contact 3212133 Fuse modular terminal block PT 6-HESILED 250 (6,3X32)
Normally In Stock
Code: 41631
PT 6-HESILED 250 (6,3X32) Phoenix Contact 3212133 Fuse modular Terminal Block - PT 6-HESILED 250 (6,3X32) Push-In Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Fused Black. 250 V, 10 A max rating.
Condition: New
Usually Ships Same day or Next Day$23.09
Sale Price
$19.24
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212133 A modular terminal block with a glass/ceramic fuse of type G/6,3 x 32 is rated for 250 V and 10 A. It features push-in connections, with a cross-sectional area of 0.5 mm2 to 10 mm2, and can be mounted using the NS 35/7,5 or NS 35/15 type. The fuse has a color code of black, indicating it can handle current ratings between these specified values.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
250 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Component Color
Black
Terminal Block Fuse Type
3 X 32
Terminal Block Amperage
10 Amp
Terminal Block Fuse Type
G - 6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
