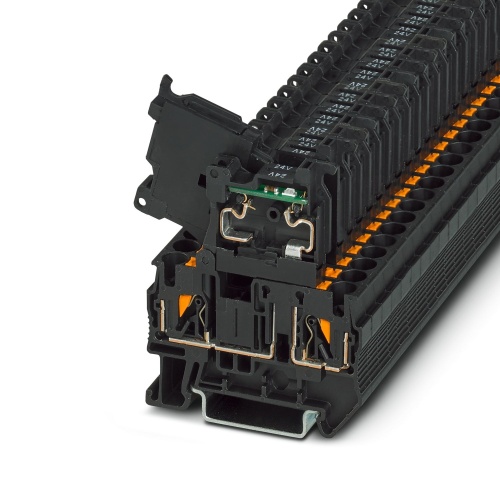

Phoenix Contact 3211903 Fuse modular terminal block PT 4-HESILED 24 (5X20)
Normally In Stock
Code: 41628
PT 4-HESILED 24 (5X20) Phoenix Contact 3211903 Fuse modular Terminal Block - PT 4-HESILED 24 (5X20) Push-In Connection 1 Level 6.2 mm with 2 Connections. Not Grounded, Fused Black. 24 V, 6.3 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$16.38
Sale Price
$13.65
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211903 The fuse terminal block features a glass/ceramic blade with a rating of G for a 5 x 20 configuration, suitable for 24 V nominal voltage applications and up to 6.3 A of current. It has push-in connections and is rated for cross-sections between 0.2 mm² and 6 mm². Available mounting types include NS 35/7,5 and NS 35/15, with a color designation of black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
